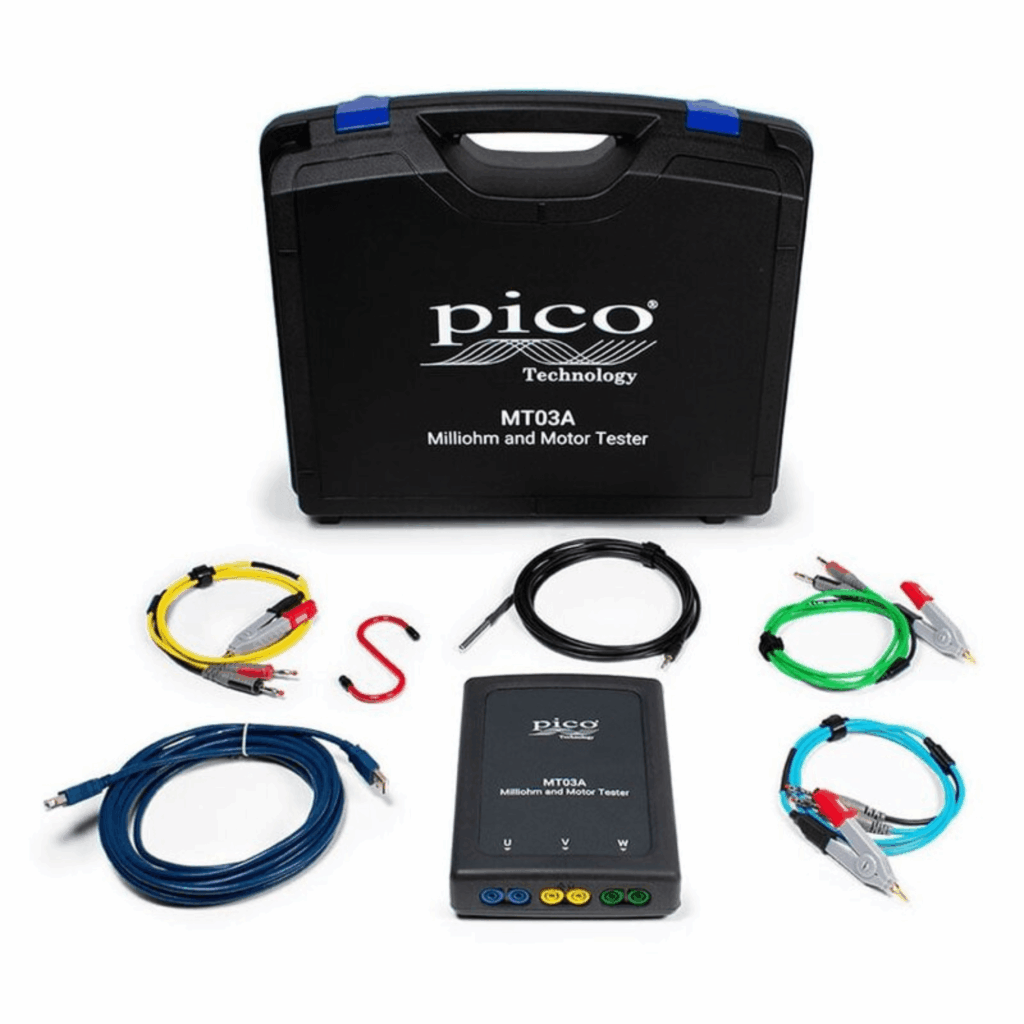

MT03A Milliohm and Motor Tester Kit (PQ326) 

The MT03A Milliohm & Motor Tester from Pico Technology revolutionises low-resistance testing by enabling complete 3-phase motor winding resistance tests in under a minute. Designed for technicians and engineers across various industries, this advanced tool produces precise results that automatically compensate for temperature fluctuations, ensuring accuracy and reliability.

Specifications

• Resistance Measurement Range: Up to 2 Ω
• Resistance Resolution: 10 µΩ
• Resistance Accuracy (Typical): ±(0.5% + 100 µΩ)
• Temperature Measurement Range: –40 to 125 °C (–40 to 257 °F)
• Temperature Resolution: 0.2 °C (0.36 °F)
• Temperature Accuracy (Typical): ±0.5 °C (0.9 °F)
• Input Protection: ±30 V
• Weight: <0.5 kg
• Dimensions: 190 x 141 x 42 mm
• PC Requirements: Windows 10 or newer (64-bit application)
• Connection: USB (4.5 m USB2 cable supplied)

Applications

The MT03A is ideal for testing a wide range of components, including fuel pumps, air-conditioning motors, regeneration pumps, blower motors, camshaft controls, EGR valves, and turbo actuators. Its earth-bond testing capability complies with UN ECE R100 regulations, making it suitable for multiple applications across the automotive, industrial, and renewable energy sectors.

Compatibility

The MT03A operates with Windows 10 and 11 devices, utilising dedicated software for an intuitive user experience. Note that it does not require a PicoScope module and is not compatible with Pico 7 Automotive software.

Why Buy?

The MT03A Milliohm & Motor Tester enhances testing efficiency and accuracy, making it an indispensable tool for professionals. With its rapid testing capabilities and user-friendly interface, this kit not only saves time but also ensures compliance with industry standards, providing peace of mind for critical applications.
