Picoscope 8 Channel Professional Kit 4823 (PQ184)

£4,779.00 ex. VAT

Description

The PQ184 PicoScope 4823 8-Channel Professional Diagnostic Kit includes the PicoScope 4823, a high-resolution, 8-channel automotive oscilloscope for comprehensive diagnostic needs. With a common-ground configuration, a maximum input range of 50V, and a sample rate of 80MS/s (10MS/s if using all 8 channels), the PicoScope 4823 offers an affordable, portable solution for multi-input applications. Ideal for diagnosing V6/V8 cam timing, trucks, construction, and agriculture equipment, as well as faults on multiple serial buses, this oscilloscope is equipped with powerful software tools to handle extensive data efficiently.



Specifications

Oscilloscope:

  • Maximum Sample Rate: 80MHz
  • Bandwidth: 20 MHz (50 mV to 50 V ranges); 10 MHz (10 mV and 20 mV ranges)
  • Channels: 8
  • Vertical Resolution: 12 bits; Enhanced vertical resolution 16 bits
  • DC Accuracy: ±1% of full scale ±300 μV
  • Input Sensitivity: 2 mV/div to 10 V/div
  • Input Ranges (Full Scale): ±10 mV to ±50 V in 12 ranges
  • Input Characteristics: 1 MΩ in parallel with 19 pF
  • Input Type: BNC
  • Input Coupling: Software selectable AC/DC
  • Overvoltage Protection: ±100 V (DC + AC peak)

PC Requirements:

  • Processor: 2 GHz
  • Memory: 4 GB
  • Screen Resolution: Minimum 1080P (1920X1080)*
  • Operating System: 64-bit edition of Windows 10 or 11 (not Windows RT or S)
  • Ports: USB 3.0 (USB 2.0 compatible)
  • Free Disk Space: 2 GB
  • *Lesser screen resolutions may work but will make some features inaccessible.

Appications

The PicoScope 4823 is perfect for:

  • V6/V8 Cam timing (4/6 cams plus crank, and sometimes a WPS), and VVT timing systems.
  • Trucks, construction, and agricultural equipment requiring simultaneous electrical and hydraulic measurements on multiple valves.
  • Full system diagnosis on components (including power, ground, signals, current).
  • Diagnosing faults on multiple serial buses (CAN, CAN FD, LIN, FlexRay).

Compatibility

The PicoScope 4823 is compatible with:

  • Windows 10
  • Windows 8 (not Windows RT)
  • Windows 7

Why Buy?

The PicoScope 4823 is a cost-effective, portable solution for multi-input automotive diagnostics. Its 8 high-resolution, high-speed channels make it ideal for a wide range of applications, while the powerful PicoScope software provides extensive data handling capabilities. This comprehensive kit includes all necessary accessories for thorough diagnostics, making it a versatile and valuable tool for any automotive professional.

Vehicle Support

We don't have this information currently. Check back soon or contact us for more information.

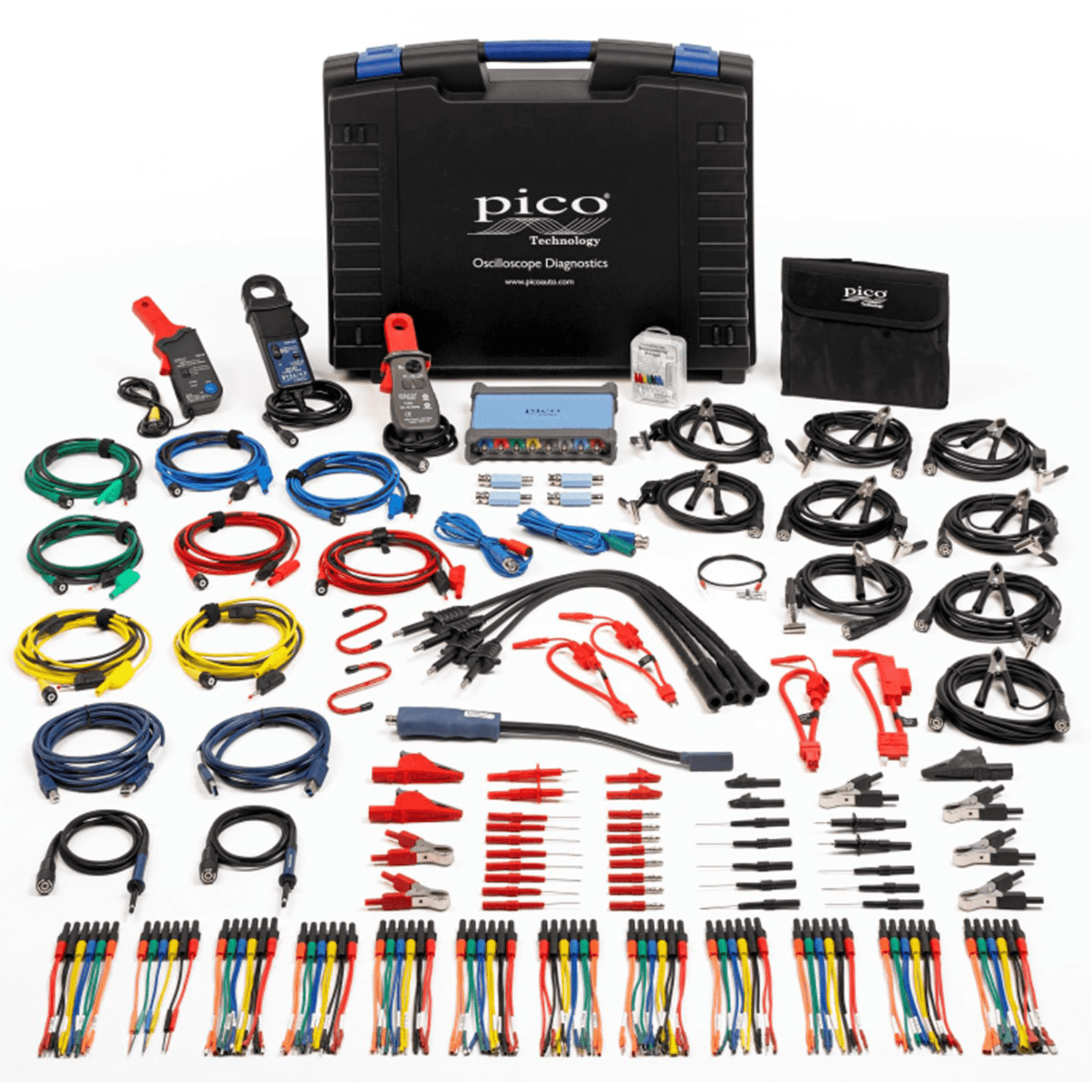

What's in the Box?

  • Carry Case: Heavy Duty PS4823
  • PS4823 8 channel 20MHz 80MS/s USB3.0 automotive scope
  • Cable: USB2 4.5m
  • Cable: USB 3.0 blue 1.8m
  • “S” Hook
  • Premium Test Leads: 3M BNC to 4mm (blue, red, green, yellow, black)
  • Label: Destiny 8 channel scope sheet of coloured labels
  • Divide by 10 attenuators
  • Oscilloscope probes: 1:1/10:1 switchable 100 MHz, BNC
  • Secondary Ignition Pickups (automotive test lead)
  • HT extension test leads
  • Insulated COP and signal probe
  • Lead: BNC to BNC with earth clamp
  • Earth wire for coil pack 45cm long
  • 60A DC current clamp with BNC connector
  • Precision 2000A/200A current clamp BNC
  • Current Clamp: 30A
  • Ultrasonic Parking Sensor Detector
  • Keyless Entry Detector
  • Breakout lead for ATC style fuses
  • Extension leads for mini style, JCASE, and maxi style fuses
  • Premium 6-way breakout lead set
  • 6 pocket roll up pouch in black Pico branded
  • Electronics Acupuncture Probes
  • Multimeter style test probes (black, red)
  • Small crocodile clips (black, red)
  • Dolphin clips 1000V CAT III (black, red)
  • 4mm shrouded to unshrouded adaptors (red)
  • Battery clips 4mm socket (red, black)
  • Flexible back pinning probes (black, red)
