Description

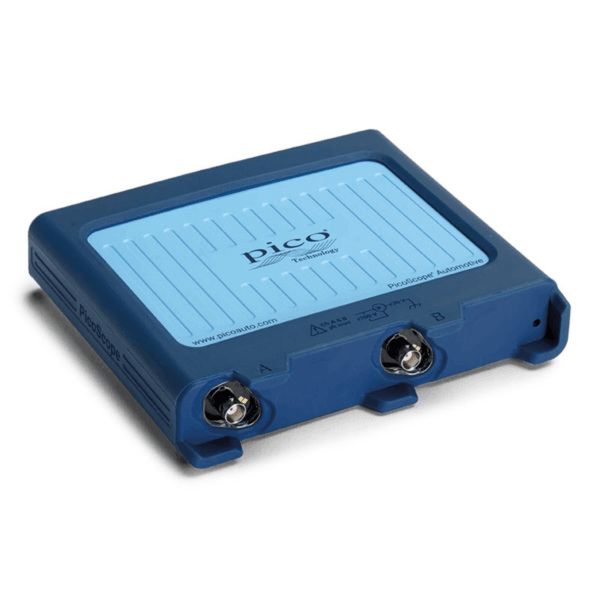

The PicoScope 4225A is a high-performance 2-channel automotive diagnostics oscilloscope, trusted by authorised and independent workshops alike. With over 25 years of innovation, it delivers exceptional measurement capabilities and support, helping technicians efficiently diagnose and document vehicle faults. It comes with the latest PicoBNC+™ interface, it enhances setup accuracy and probe management, making it an indispensable tool for automotive diagnostics.
Specifications
- Channels: 2
- Vertical Resolution: 12-bit (16-bit in optimised mode)
- DC Accuracy: ±1% of full scale (2% in 50mV range)
- Sensitivity: 10mV/div to 40V/div
- Input Ranges: ±50mV to ±200V in 12 ranges
- Input Impedance: 1MΩ parallel to 24pF
- Input Type: Potential-free, PicoBNC+ floating single-pin connector
- Bandwidth: 20MHz (10MHz in ±50mV range)
- Maximum Sampling Rate:
1 channel: 400MS/s
2 channels: 200MS/s - Buffer Memory: 250 million samples
- Dimensions: 190 x 160 x 40 mm
- Weight: <900 g
Applications
Ideal for diagnosing automotive systems, the PicoScope 4225A is perfect for:
- Engine performance analysis
- Electrical system troubleshooting
- Signal integrity verification in modern vehicles
- Air conditioning system diagnostics
Compatibility
Compatible with a wide range of vehicles and automotive systems, the PicoScope 4225A supports diverse diagnostic probes and current clamps, increasing versatility and application across different vehicle makes and models.
Why Buy?
PicoScope 4225A is a reliable tool for your workshop backed by extensive industry experience. Its advanced features, such as PicoBNC+ technology, high sampling rates, and robust software support, allow for accurate diagnostics, improving efficiency and accuracy in fault detection. Free software upgrades ensure your investment remains up-to-date and powerful for years to come.
Vehicle Support
What's in the Box?
- PicoScope 4225A Oscilloscope
- USB interface cable
- Software
- Quick start instructions
