Picoscope 4 Channel Standard Diagnostic Kit 4425A (PQ178)

£2,597.00 ex. VAT

Description

The Pico PQ178 STANDARD Diagnostic Kit is a comprehensive solution for automotive diagnostics, featuring the advanced 4425A Picoscope module. This kit includes PicoBNC+™ test probes and various accessories, all in a strong carrying case. The 4425A integrates easily with the continuously updated PicoScope Automotive software, which comes with no subscription costs or in-app purchases. Designed for ease of use, it’s perfect for beginners while being ideal enough for Master Technicians, trainers, and instructors.



Specifications

  • Model: PicoScope 4425A
  • Channels: 4
  • Real-time Sample Rate: Up to 400 MS/s
  • Bandwidth: 20 MHz
  • Sample Memory: 250 million samples
  • Input Range: ±200 V to ±50 mV (12 ranges)
  • DC Accuracy: ±1% of full scale
  • Vertical Resolution: 12 bits (16 bits enhanced)
  • Connectivity: USB 2.0/3.0
  • Operating Systems: Windows 10/8/7; Linux and macOS (TBD)
  • Warranties: 24 months for the scope module, 12 months for accessories

Appications

  • Automotive diagnostics and repairs
  • Educational purposes in training institutions
  • Advanced waveform analysis for vehicle electronics
  • Testing and troubleshooting of various automotive systems

Compatibility

  • Compatible with all vehicles
  • Works with existing PicoScope and third-party BNC probes
  • Supports Pico transducers (WPS500X and WPS600C) and NVH interfaces

Why Buy?

  • User-Friendly: Intuitive design makes it accessible for students and novices.
  • Advanced Technology: Equipped with smart probe interfacing and high-definition waveform viewing.
  • Continuous Updates: Get the latest software enhancements without any extra costs.
  • Versatile Usage: Suitable for various automotive diagnostics, from basic to advanced applications.
  • Robust Warranty: Enjoy peace of mind with extensive warranty coverage on all components.

Vehicle Support

We don't have this information currently. Check back soon or contact us for more information.

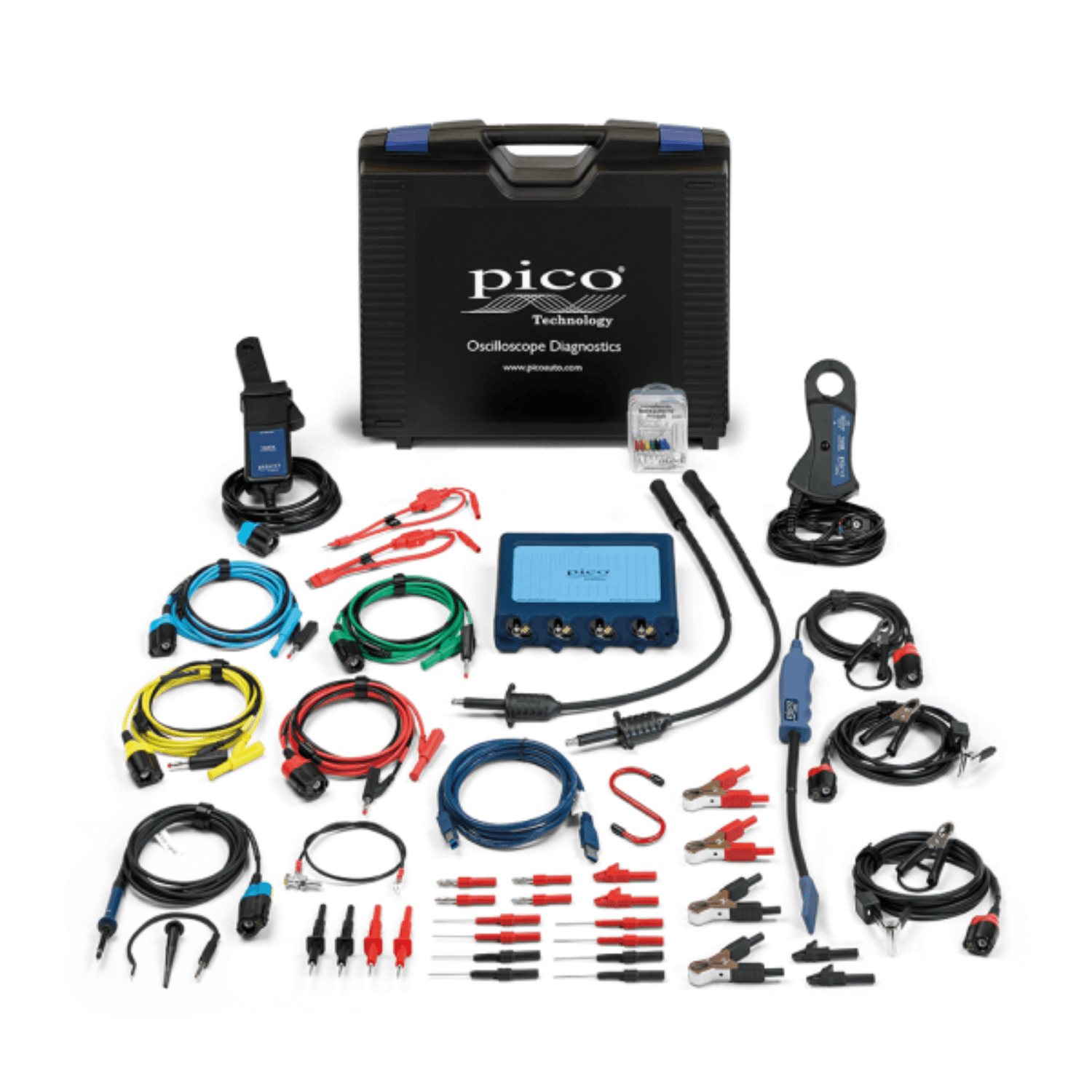

What's in the Box?

PicoScope Module:

  • 1 x Pico 4425A 4-channel scope module

Test Leads and Breakouts:

  • 4 x PicoBNC+ 3-meter Test Leads (Blue, Red, Green, Yellow)
  • 1 x PicoBNC+ 10:1 Scope Probe

Ignition Components:

  • 2 x Secondary Ignition Pickups
  • 1 x COP Probe
  • 1 x 45 cm Earth Wire for Coil Pack
  • 2 x HT Extension Test Leads

Current Measurement:

  • 1 x 60A AC/DC Current Clamp
  • 1 x 200A/2000A AC/DC Current Clamp

Clips, Probes, and Adapters:

  • Various crocodile clips, multimeter test probes, battery clips, and acupuncture probes

Miscellaneous:

  • 1 x S Hook
  • 1 x USB Cable (1.8 meters)
  • 1 x Carry Case

Warranty Information:

  • 24 months for the scope module
  • 12 months for all other items
