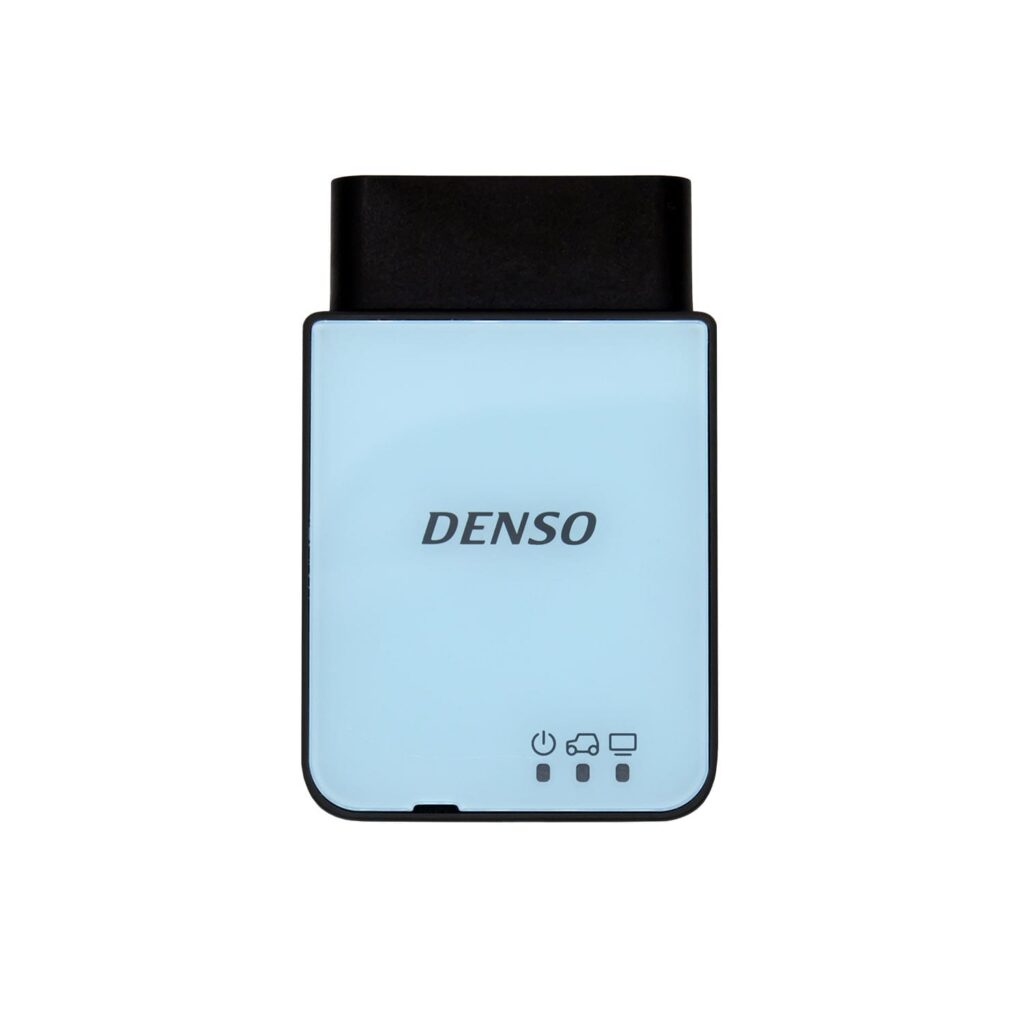

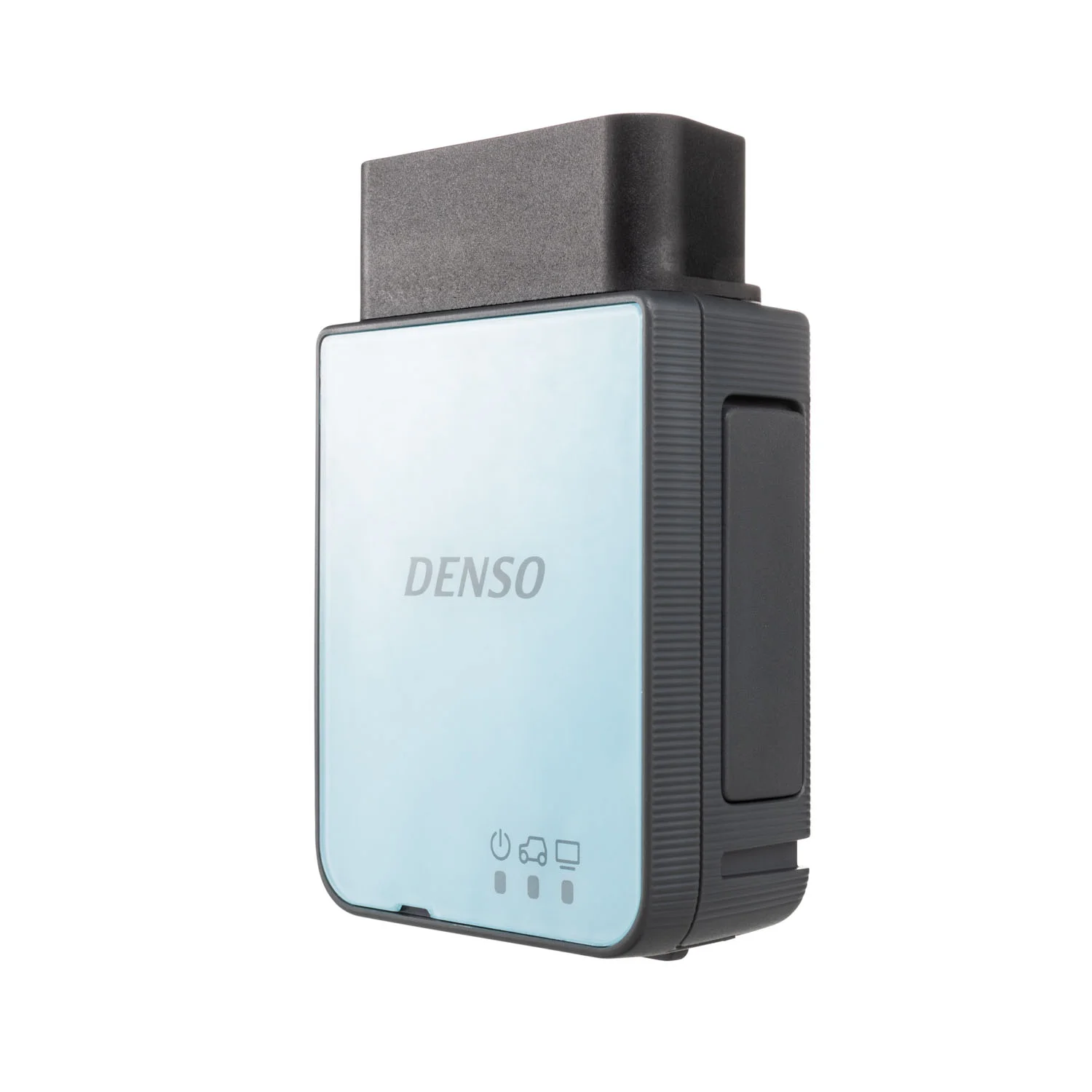

Subaru DST- 010 Mini VCI

The Subaru DST-010 Mini VCI; a specialised diagnostic tool is tailored for Subaru vehicles. It serves as an upgrade to the Denso DST-i interface, maximizing diagnostic functions for automotive technicians.

Powered with a capable 32-bit microcontroller, it supports essential communication protocols, including ISO9141(K/L), HS-CAN, and Subaru-specific standards, facilitating thorough diagnostic capabilities for vehicles (from 2004 to 2023). The wireless module provides convenient Wi-Fi and Bluetooth connections to a computer, allowing for immediate data transfer and analysis.

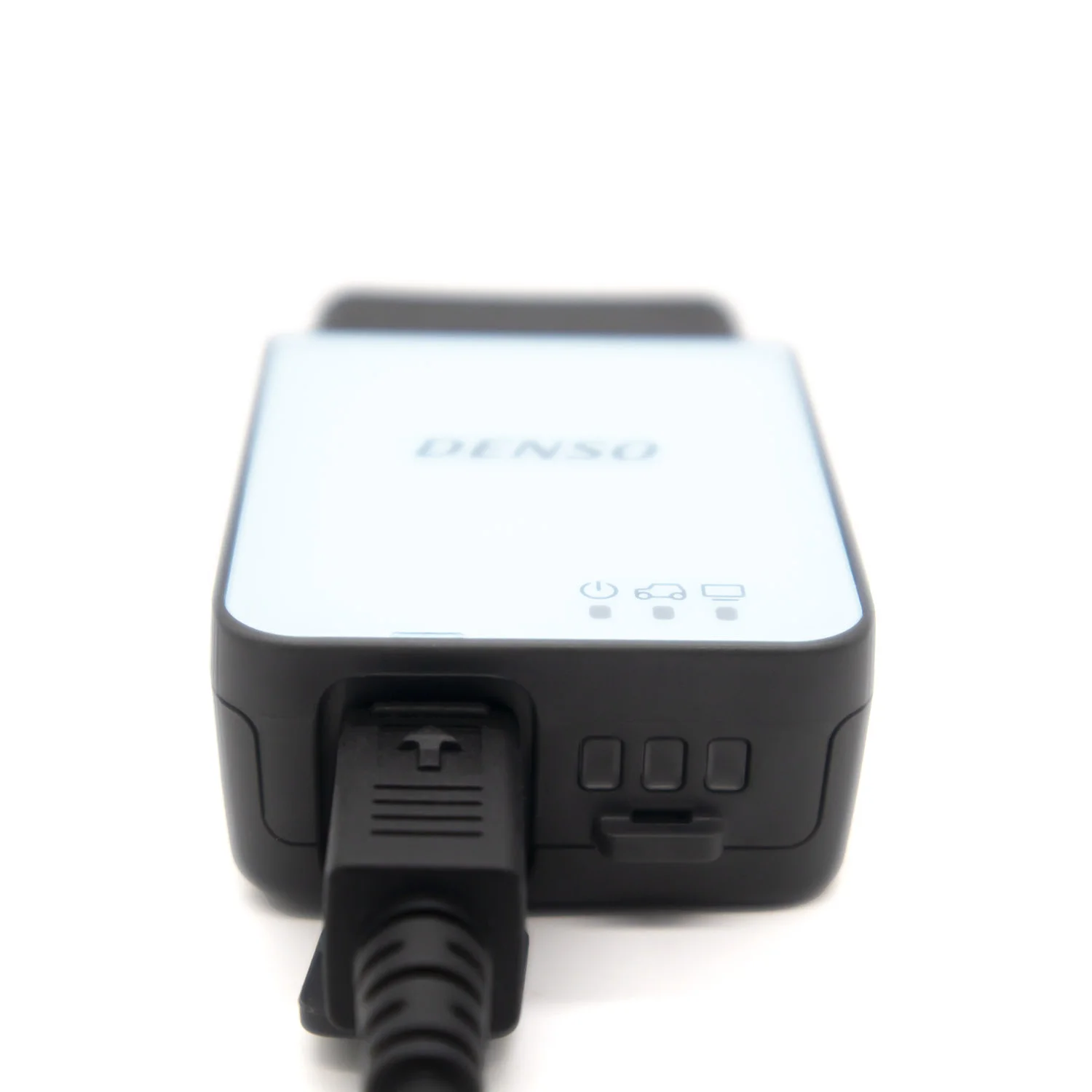

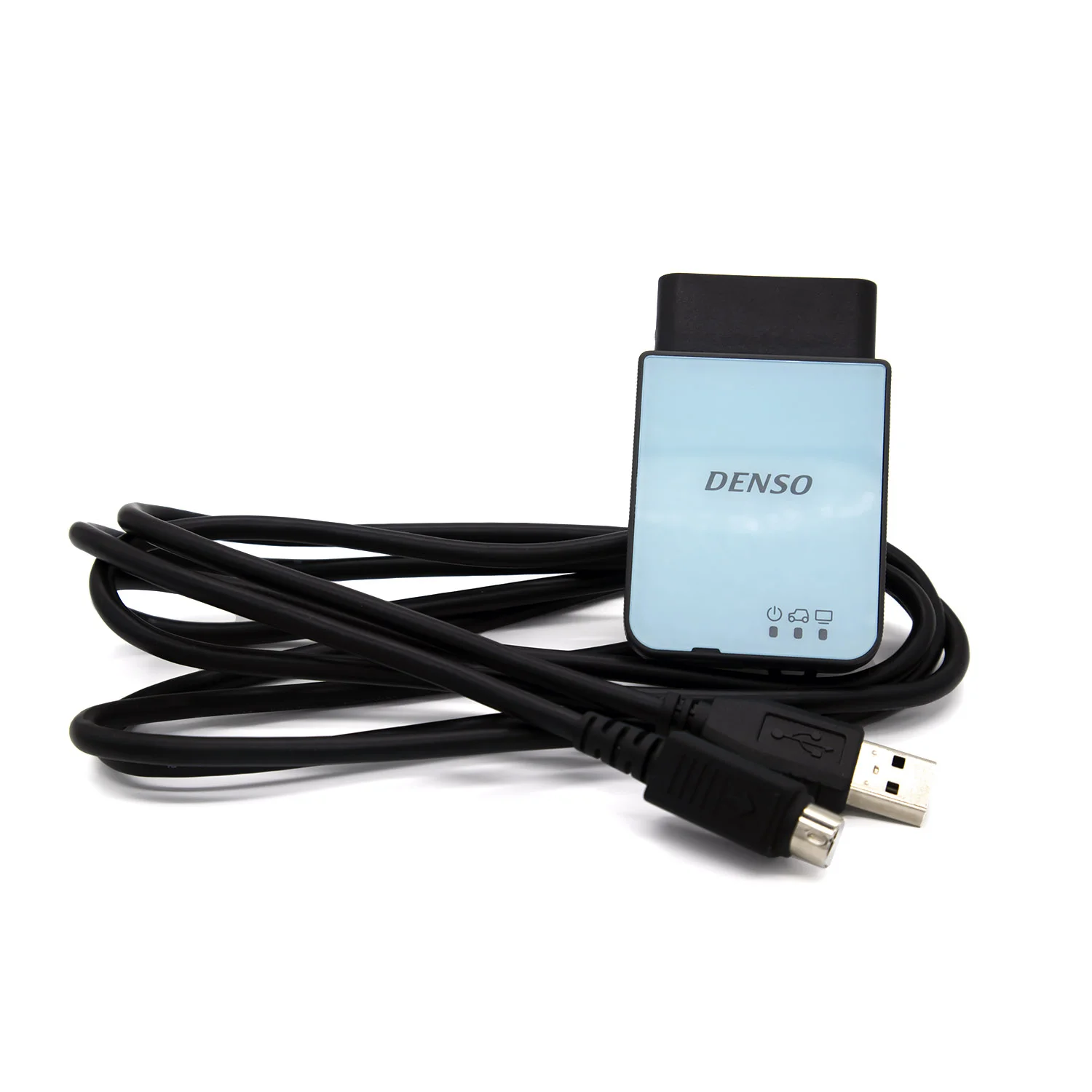

DST-010 has a USB2.0 Mini-DIN connector and a bracket that protects the USB cable, reducing the possibility of disconnection during use. This tool is compatible with the Subaru Select Monitor IV (SSM IV) software, which provides comprehensive system coverage, including smart key coding, key registration, keyless entry, blind-spot monitoring, and adaptive cruise control.

Specifications:

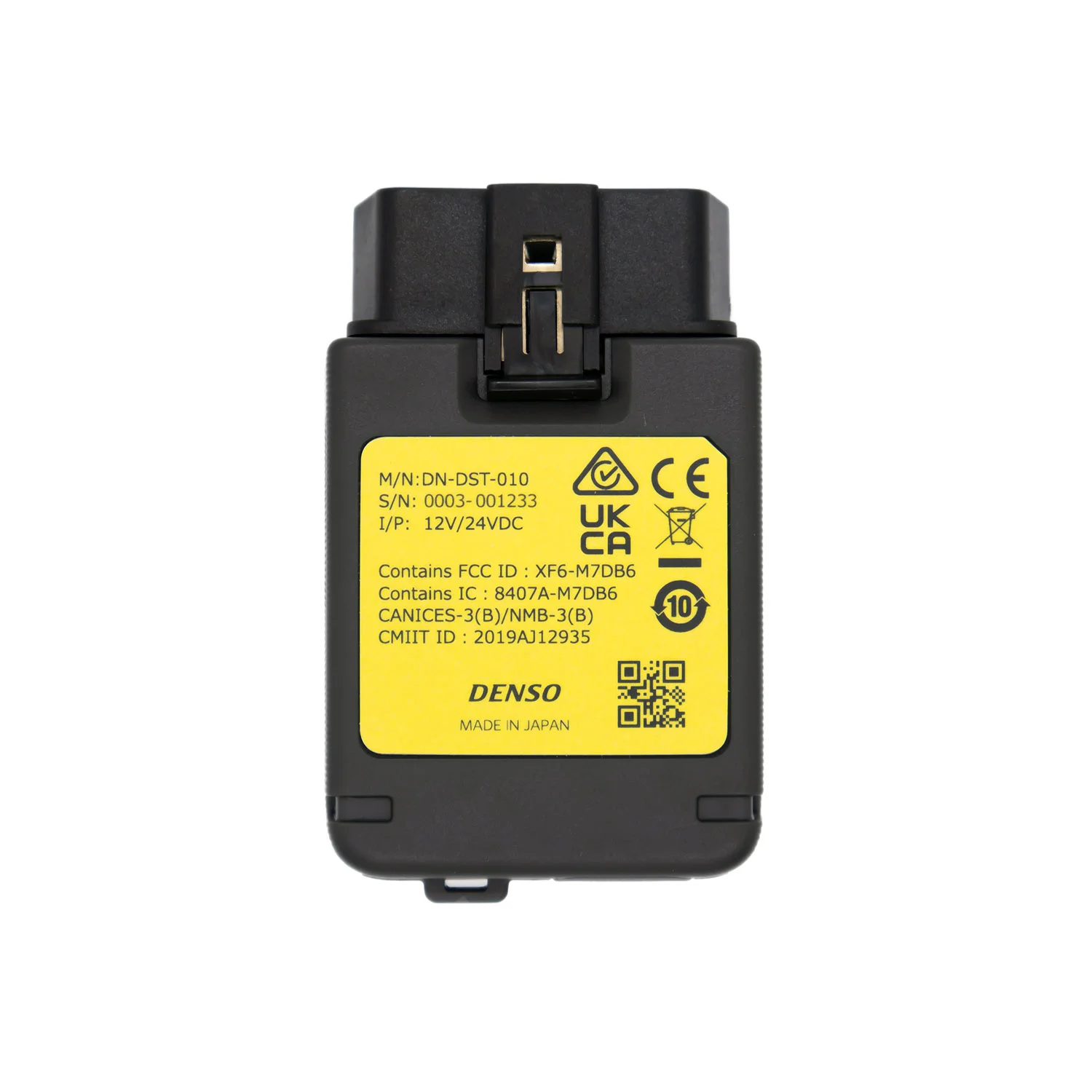

• Manufacturer: DENSO
• Made in Japan
• CPU: 32-bit microcontroller
• External Interface: USB2.0 x 1 (Mini-DIN connector)
• Wireless LAN: IEEE802.11bgn 2.4GHz
• Bluetooth: IEEE802.15.1 Ver.4.0/Class1
• Vehicle Communication Protocols:
• ISO9141(K/L)
• HS-CAN
• DoIP (high-speed communication, green model only)
• SD Memory Card Slot: Compatible with SD and SDHC
• Operating Temperature: -10 to 50°C (Storage: -10 to 60°C)
• Dimensions: Compact and lightweight design
