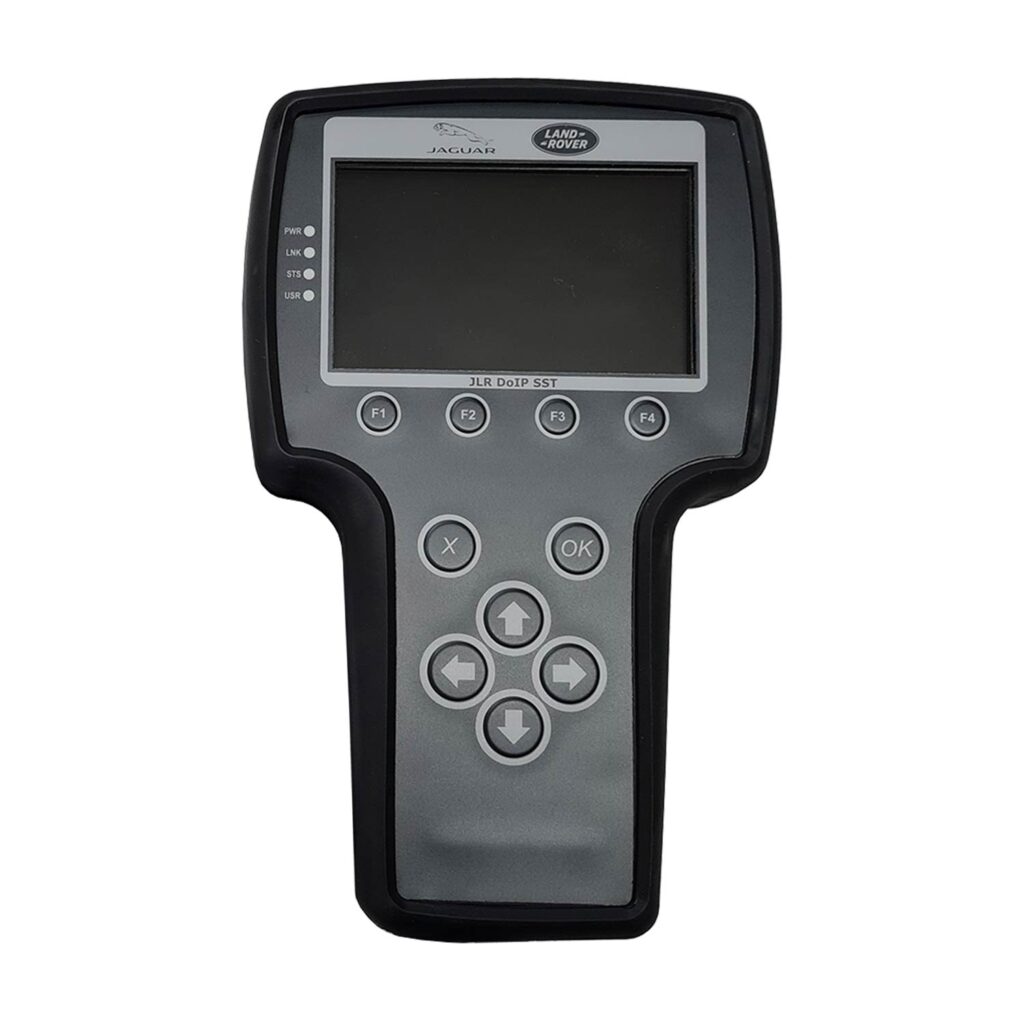

Jaguar Land Rover DOIP SST Hand-Held Device

The original and cost-effective answer to Jaguar Land Rover servicing. Designed to help independent all-makes workshops to keep up to date with the latest service functions such as service light reset, electronic park brake release and more on CAN and DOIP vehicles.

Fast start-up times mean it takes less time to complete those service jobs and leaves your diagnostic tool free to carry out the more complex jobs. This compact tool has an intuitive colour screen with a button membrane, allowing this tool can be used anywhere in the workshop.

This JLR-approved device has support and compatibility with all current and future DOIP vehicles as covered in Topix Cloud.

Important Note

You will need to register your product to unlock it for use. To register your product, you will need to first download the Diagnostic Associates App Hub from the website here. Please follow the advice in the User Manual, which can be found in TopiX. It is important to install the Diagnostic Associates App Hub before plugging your device into your computer.

Features

• Intuitive simple user interface, colour screen with button membrane.
• Wi-Fi connectivity allows remote device connection and application download updates.
• Secure encrypted data connection to AWS cloud services.
• J2534, DPDU support for existing retailer diagnostic tools.
• Support for remote diagnostic runtime interface, and pay-as-you-go application support.
• 12-Month Warranty.
• DTC Read & Clear. Note: This is not standard on the Tool when purchased from JLR.

Approved JLR applications for the JLR SST

• Service Interval Reset (SIR) – This application resets the service light and/or oil change reset depending on the vehicle.
• Electronic Park Brake Release (EPBR) – Moves the electronic park brake to the mount position and then releases the brake callipers.
• DPF Dynamic Regeneration (DPFDR) – The DPFDR application allows the vehicle’s DPF dynamic regeneration process to be undertaken to clear the DPF of soot build-up.
• Oil Level Measurement – Displays current engine oil level instantaneously on screen with a bar graph and actual levels.
• Diesel Exhaust Fluid (DEF) – Allows the Diesel Exhaust Fluid (DEF or AdBlue) level to be constantly monitored, and displays the amount required to refill the tank.
• TM Toggle (Transport Mode Toggle) – The Transport Mode Toggle application allows the vehicle to be placed in and out of Transport mode including speed limit and air suspension depending on the vehicle variant.
• TTM Toggle (Tight Tolerance Mode Toggle) – The Tight Tolerance Mode Toggle application allows the vehicle to be placed in and out of Tight Tolerance mode depending on the vehicle variant.
• Force Ignition – The Force Ignition Application turns the vehicle’s ignition on and holds it in the on position for as long as the JLR SST is connected to the vehicle and the application is running.
• DTC Read and Clear – This Feature allows you to read and clear the Diagnostic trouble codes in each module of the vehicle or select from High-speed CAN bus or Medium speed CAN bus modules only. ( Only DTC codes are displayed ) for DTC Descriptions a subscription is recommended.

Further to the above Diagnostic Associates have developed further applications to enhance the usage of this device. These come at an extra cost of £140 and can be purchased directly through the tool software only. The current items covered by the subscription price is as follows:

• Adaptions Reset (Included in your default applications, but unable to be used, if not subscribed too, after your 30-day free trial)
• Battery Replacement (Included in your default applications, but unable to be used, if not subscribed too, after your 30-day free trial)
• Forward Facing Camera Calibration (Not currently included in the 30-day free trial)
• Forward Facing Radar Calibration (Not currently included in the 30-day free trial)
• DTC Descriptions and the Vehicle DTC Report (You will need to request a username and password, but unable to use, unless subscribed too, after a 30-day free trial)

Software

The guide for downloading and installing the JLR SST app Hub to a local PC and updates can be accessed from the app hub.
The hub can be accessed here.
