Daihatsu DST- 010 Mini VCI
£2,895.00 ex. VAT
Description
The Daihatsu DST-010 is a diagnostic interface made for Daihatsu vehicles. It builds on previous Denso models and comes with improved performance and features to meet modern diagnostic requirements.
The DST-010 is powered by a 32-bit microcomputer, and supports key communication protocols, including ISO9141(K/L), HS-CAN, and DoIP (Ethernet). This enables comprehensive diagnostics across many vehicle systems, giving technicians access to important data for troubleshooting.
The Daihatsu DST-010 offers both wired and wireless connectivity options. The variants are equipped with Wi-Fi and Bluetooth for easy connection to PCs for real-time data transfer and monitoring. These features make it a reliable tool for workshops focused on efficiency and accuracy.
Specifications
- CPU: 32-bit microcomputer
- External Interface: USB 2.0 x 1 (Mini-DIN connector)
- Wireless LAN (GREEN/YELLOW): IEEE802.11bgn 2.4GHz
- Bluetooth (GREEN/YELLOW): IEEE802.15.1 Ver.4.0/Class1
- Vehicle Communication Protocols:
- ISO9141(K/L)
- HS-CAN
- DoIP (Ethernet) – Supported on GREEN variant
- Power Supply: Vehicle power supply DC6.5 ～ 32V, USB power (BUS power) DC4.75 ～ 5.25V
- Power Consumption: Max. 2.5W (12VDC)
- Operating Temperature: -10 ～ 50℃ (Storage: -10 ～ 60℃)
- Operating Humidity: 35 ～ 85%
- Main Unit Dimensions: 47.2mm (W) x 73.0mm (H) x 22.5mm (D)
- Main Unit Mass: Approx. 70g (GREEN), 60g (YELLOW/PINK)
- OS Compatibility: Windows 10/11 (excluding ARM processors)
Vehicle Support
The Daihatsu DST-010 supports all Daihatsu vehicles from 1996 onwards, ensuring comprehensive coverage for both legacy and newer models. The GREEN variant offers extended functionality through DoIP (Ethernet), making it ideal for advanced diagnostic tasks.
What's in the Box?
- Daihatsu DST-010 Mini VCI (GREEN, YELLOW, or PINK)

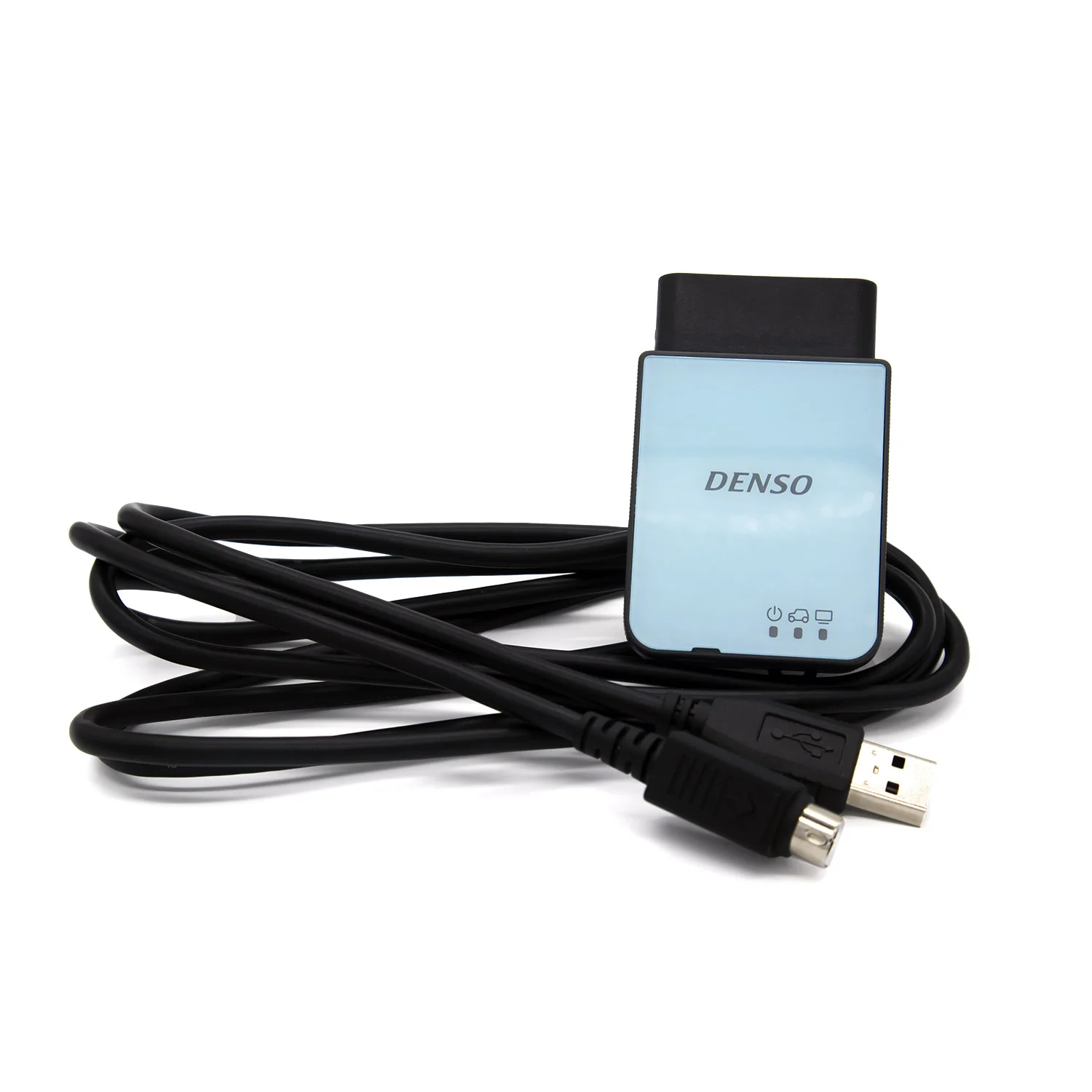

- USB Cable [1 Meter]
- USB Bracket
- Instruction Manual
