NVH Standard Diagnostics Kit

£945.00£2,165.00 ex. VAT

Description

The Pico NVH Standard Diagnostics Kit accurately identifies the source of vehicle vibrations. By employing a “4th axis” alongside a 3-axis accelerometer, technicians can obtain baseline readings from the seat rail and then assess vibrations at various points on the vehicle, including the left front, right front, left rear, and right rear, to pinpoint where the vibrations are most pronounced.

This kit provides everything needed to utilise the PicoScope for thorough analysis of Noise, Vibration, and Harshness (NVH) issues. Whether the customer perceives vibrations or noises, this kit helps discover the underlying causes, such as:

  • Cabin vibrations at speed
  • Engine vibrations across the entire rev range
  • Clutch judder or vibration
  • Transmission and bearing whine
  • Auxiliary drive noise
  • Brake judder
  • Steering vibrations

Specifications

  • Weight: Interface: 120 g, Vibration Sensor: 80 g, Microphone: 20 g
    Dimensions:
    Sensor Interface (including BNCs): 105 mm x 65 mm x 27 mm
    Microphone: 43 mm x Ø17 mm
  • Magnet (with fitted grub screw): 12 mm x Ø18 mm
  • Sensor Extension Lead Length: 3 m
  • Battery: Lithium Primary Cell CR123(A) 3 V (user-replaceable)
  • Battery Life: Shelf – 10 years; Vibration Mode – 6 months; Microphone Mode – 2 months
  • Maximum Measurable Acceleration: ±5 g
  • Vibration Frequency Range: DC to 350 Hz (3 dB)
  • Shock Survivability: 10,000 g
  • Operating Temperature Range: -40 °C to 85 °C
  • Thread Mounting (Accelerometer): ¼” x 28 UNF
  • Microphone Sensitivity: 45 mV/Pa at 1 kHz (nominal)
  • EMC Approvals: CE: Meets EN61326-1:2006

Applications

The Pico NVH Standard Diagnostics Kit is essential for diagnosing various vehicle issues related to noise and vibration. It enables technicians to gather and analyse data effectively during road tests, facilitating accurate identification and resolution of potential problems. Common applications include:

  • Identifying cabin vibrations at different speeds
  • Assessing engine performance throughout the rev range
  • Diagnosing clutch and brake-related vibrations
  • Analysing auxiliary drive noises
  • Evaluating steering vibrations and their causes

Compatibility

This kit is compatible with the PicoScope 4425 and 4423 Automotive oscilloscopes, which are sold separately. It connects via a BNC cable and uses the complimentary PicoDiagnostics NVH software, compatible with Windows XP, Vista, 7, 8, and 10 (not Windows RT). An activation code is necessary to enable the software, and this is non-transferable.

Why Buy?

The NVH Standard Diagnostics Kit offers an effective and efficient method for diagnosing common NVH issues. It equips technicians with the tools necessary to collect and evaluate objective data, ensuring accurate diagnosis of complex vibration problems. The kit’s ability to generate detailed reports enhances communication with customers, providing clarity and confidence in the repairs undertaken.



Vehicle Support

We don't have this information currently. Check back soon or contact us for more information.

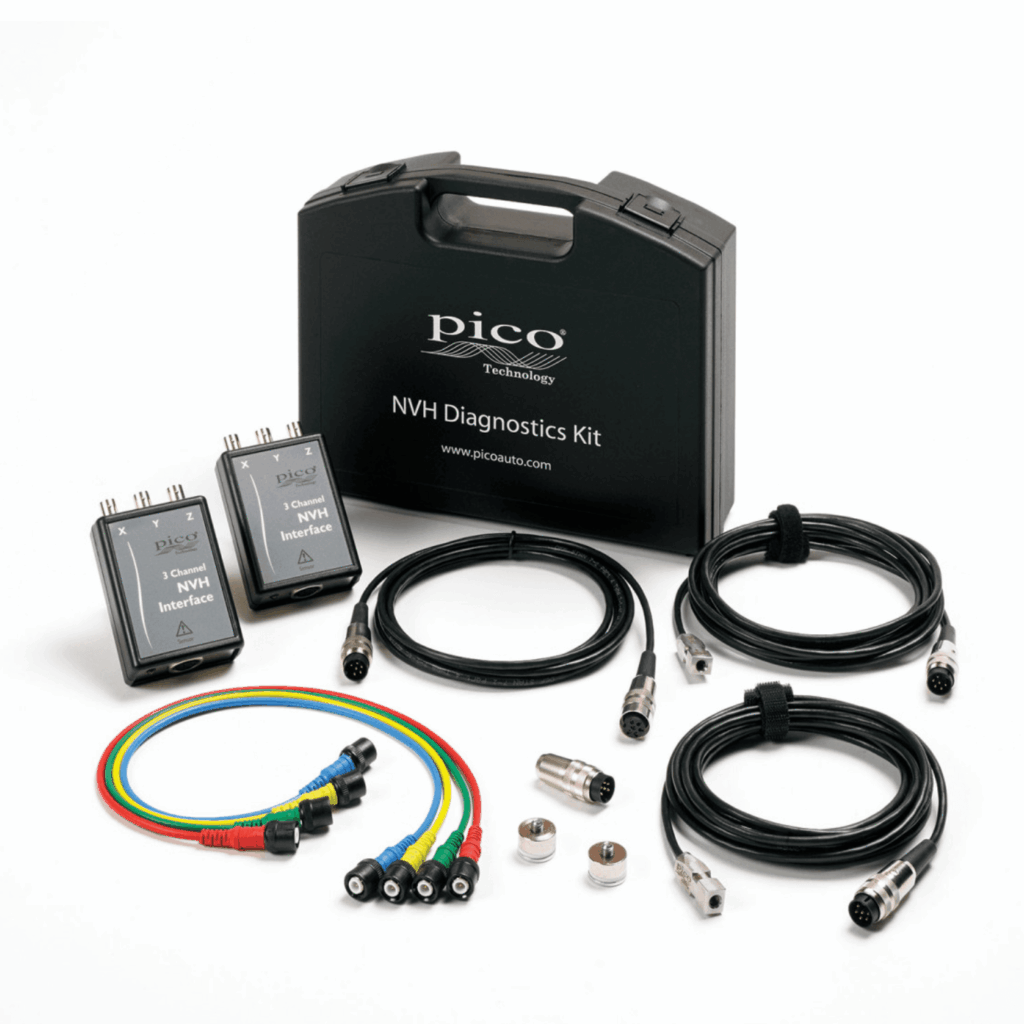

What's in the Box?

  • 2 x 3-axis NVH interface units
  • 2 x MEMS Accelerometers (TA143)
  • 2 x Mounting magnets for accelerometers (TA096)
  • 2 x Microphones (TA144)
  • 1 x Cable: NVH to Scope module, 0.5 m (Blue, TA243)
  • 1 x Cable: NVH to Scope module, 0.5 m (Red, TA244)
  • 1 x Cable: NVH to Scope module, 0.5 m (Green, TA245)
  • 1 x Cable: NVH to Scope module, 0.5 m (Yellow, TA260)
  • 4 x Extension cables (3 metres) (TA145)
  • 1 x Software: NVH licence for one PicoScope module (non-transferable)
  • 1 x Carry case
  • 1 x Year warranty
