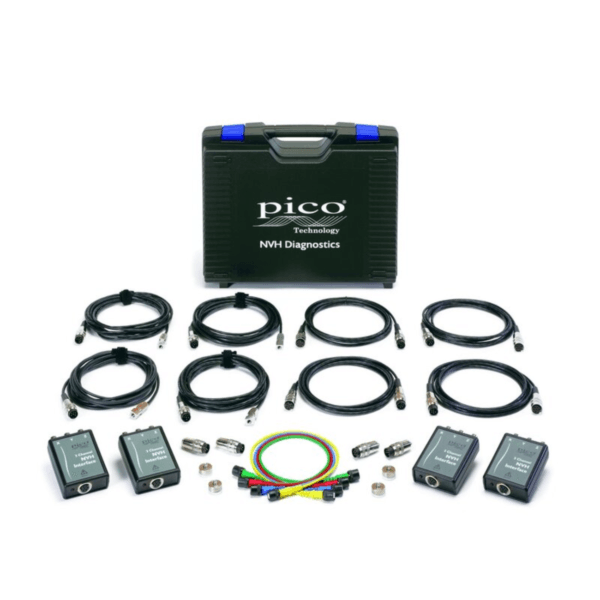

NVH Advanced Diagnostics Kit

The Pico NVH Advanced Diagnostics Kit is a comprehensive solution for diagnosing noise, vibration, and harshness (NVH) issues in vehicles. This advanced kit features a unique “4th axis” capability, enabling users to pinpoint the source of vibrations with precision. By starting with baseline readings from the 3-axis accelerometer, you can systematically assess various points around the vehicle—left front, right front, left rear, and right rear—to identify the location of the strongest vibrations.

Features

• Four 3-axis Accelerometers & Microphones: Equipped with multiple sensors for comprehensive analysis.
• Real-Time Data Visualisation: Utilise the software to display vibrations through bar graphs, frequency charts, and 3D visualisations, allowing for immediate diagnostics.
• Dynamic Testing: Ideal for assessing cabin vibrations at speed, engine vibrations across the rev range, and other critical vehicle noise issues.
• Comprehensive Analysis Tools: Features like waterfall and spectral displays provide in-depth analysis capabilities, ensuring accurate diagnosis.
• Road Test Recording: Take the kit on the road, capture data, and playback results in the workshop for thorough examination.
• Dynamic Driveline Balancing Support: Offers detailed procedures for pinion flange and single weight balancing methods.
• Import Capability: Allows users to import WAV audio files for additional context in diagnostics.

Specifications

• Weight: 120 g (Interface), 80 g (Vibration Sensor), 20 g (Microphone)
  Dimensions:
  Sensor Interface: 105 mm x 65 mm x 27 mm
  Microphone: 43 mm x ø17 mm
• Magnet: 12 mm x ø18 mm
• Sensor Extension Lead Length: 3 m
• Battery: Lithium Primary Cell CR123(A) 3 V (user replaceable) with a lifespan of up to 10 years in shelf mode.
• Operating Temperature Range: –40 °C to 85 °C
• Maximum Measurable Acceleration: ±5 g
• Vibration Frequency Range: DC to 350 Hz
• Microphone Sensitivity: 45 mV/Pa at 1 kHz
• EMC Approvals: CE compliant with EN61326-1:2006 standards.

Requirements

• Hardware: Compatible with the 4-channel PicoScope 4425 or 4423 Automotive Oscilloscope (sold separately).
• Software: Windows XP, Vista, 7, 8, 10 (not Windows RT) is required to run the free PicoDiagnostics NVH software.
• Activation: Unlock code necessary for PicoScope compatibility; non-transferable and requires serial number submission via email to Pico.

Why Buy?

The NVH Advanced Diagnostics Kit equips you with an all-inclusive solution for diagnosing noise, vibration, and harshness in vehicles. The kit includes advanced hardware and user-friendly PicoDiagnostics software, allowing for detailed identification of issues across multiple systems. With four 3-axis accelerometers and microphones, you can easily assess cabin vibrations and engine performance. The ability to record and save analysis files enhances customer communication, making it easier to explain diagnoses and necessary repairs. Ideal for both workshop diagnostics and road tests, this kit is essential for mechanics looking to increase their service offerings and improve customer satisfaction. Plus, with free software updates, you’ll always have access to the latest features and enhancements.
