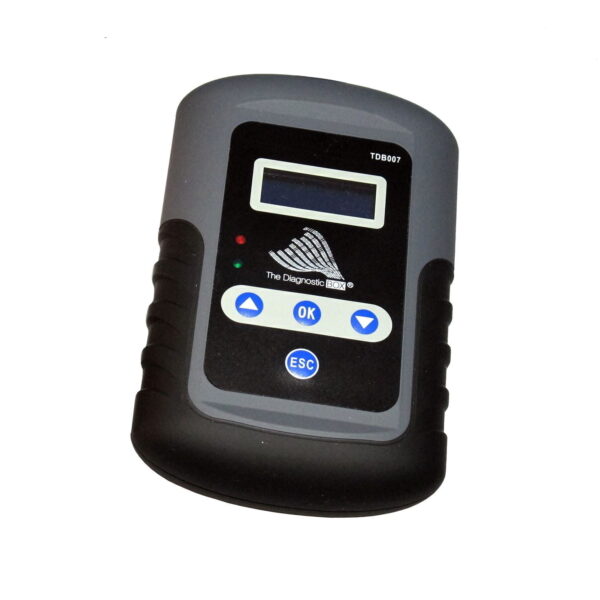

Peugeot/Citroën PIN Code Wizard (TDB007)

The Peugeot and Citroen Pin Code Wizard is a user-friendly device used to extract the pin code from a range of vehicles.

The device has two modes of operation:

Working Key Mode The device can read the pin code from the vehicle immobilizer BSI memory when a working key is available, within 5 minutes.

Lost Key Mode The device can read the pin code from the vehicle immobilizer BSI memory when there are no working keys. The time taken depends on the vehicle type and system, but typically takes between 15 and 90 minutes.

Features

• A small backlit LCD display
• A small keypad to navigate the menu
• A rear magnet for aid testing and to secure the deice when working under the bonnet/hood

Applications

The device can work on all Peugeot and Citroen based models from 2001 to 2015 as listed below. The applications are updated on a regular basis, so please always refer to the latest version release notes to ensure you have the up to date information before you attempt to read the pin code. The device works on vehicles from 2005/2006 using the OBD port if CAN bus is available at the vehicle OBD connector. However, for vehicles prior to this, a direct connection can be made to the engine ECU connector CAN wires to enable communication with the BSI immobilizer ECU.

Vehicle Coverage

• Citroen Berlingo, C2, C3, C3 Picasso, C3 Pluriel, C4 Cactus, C4 Picasso, C5, C8, DS3, DS4, DS5, Xsara Picasso, Berlingo 2, Berlingo 3, Jumper, Jumpy
• Peugeot 1007, 206, 207, 208, 2008, 306, 307, 308, 3008, 406, 407, 4007, 508, 5008, 607, 806, 807, Bipper, Expert, Partner
• Fiat Scudo
• Toyota Proace

What’s In The Box

• Pin Code device

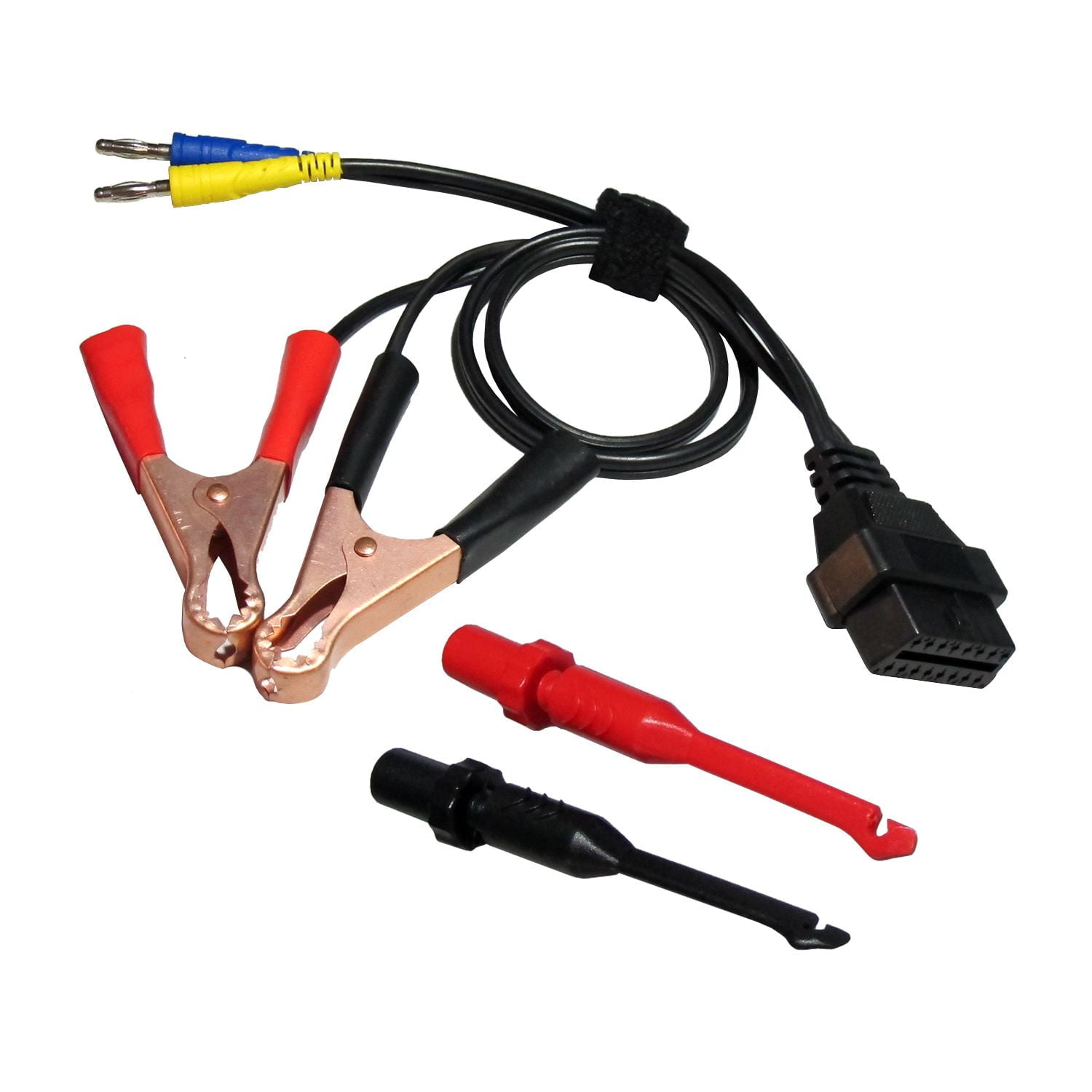

• An OBD connector and cable
• An additional cable/connectors for working with vehicles that do not have CAN BUS located within the OBD Diagnostic connector
