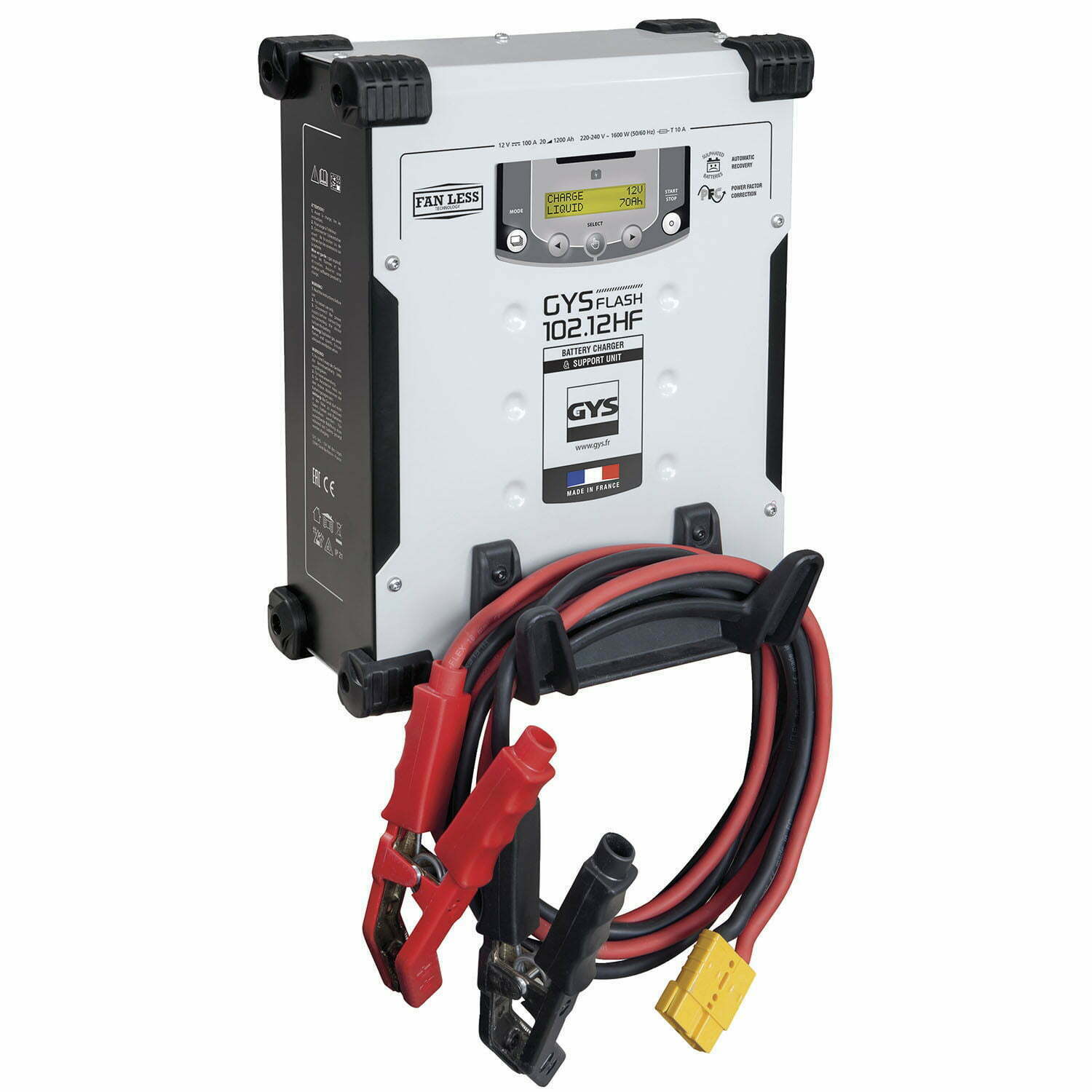

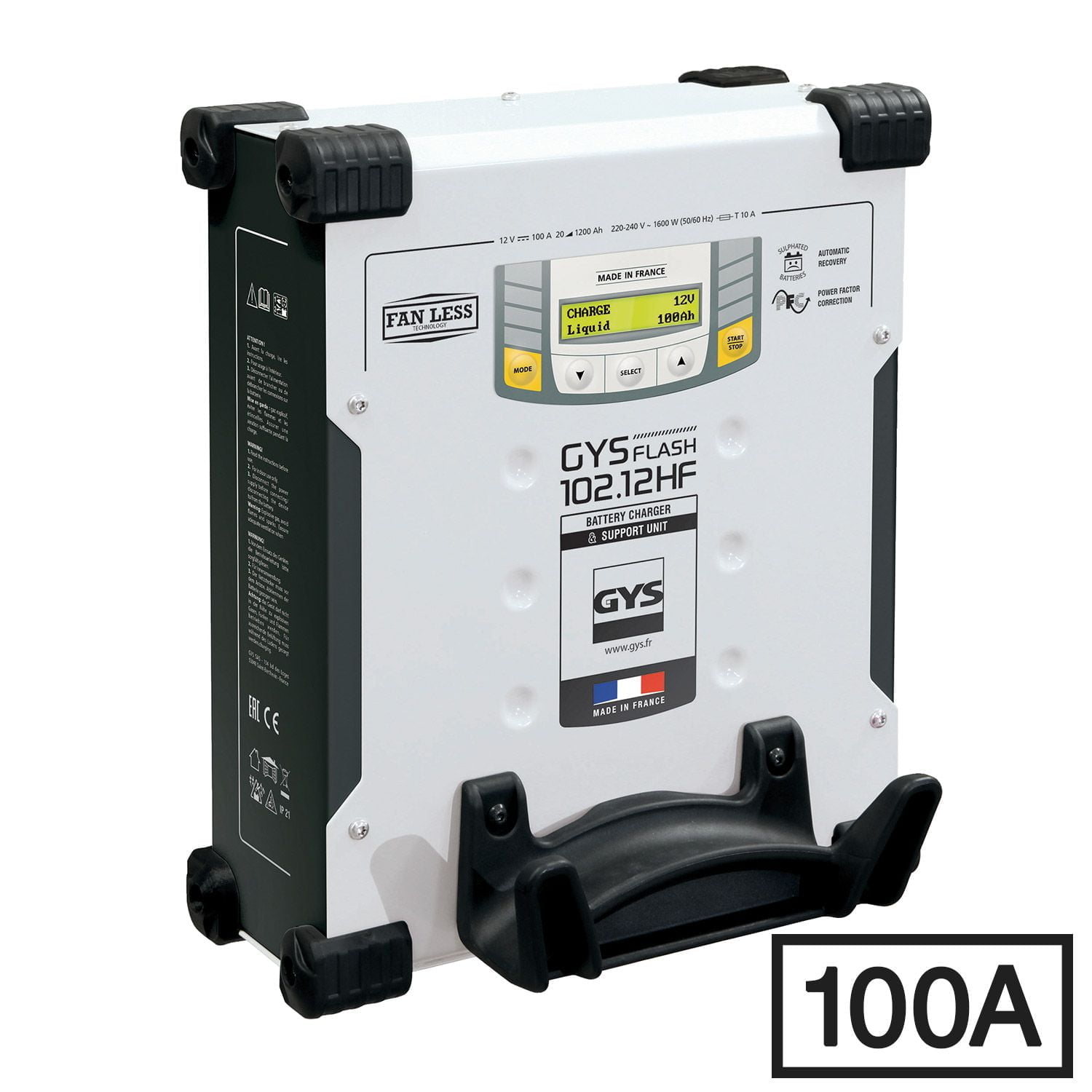

GYSFLASH 102.12 HF (100A) with 5m Cables

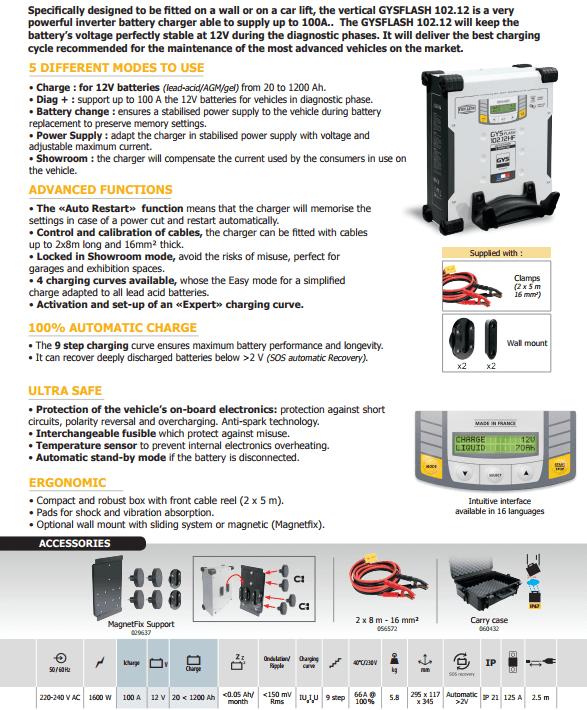

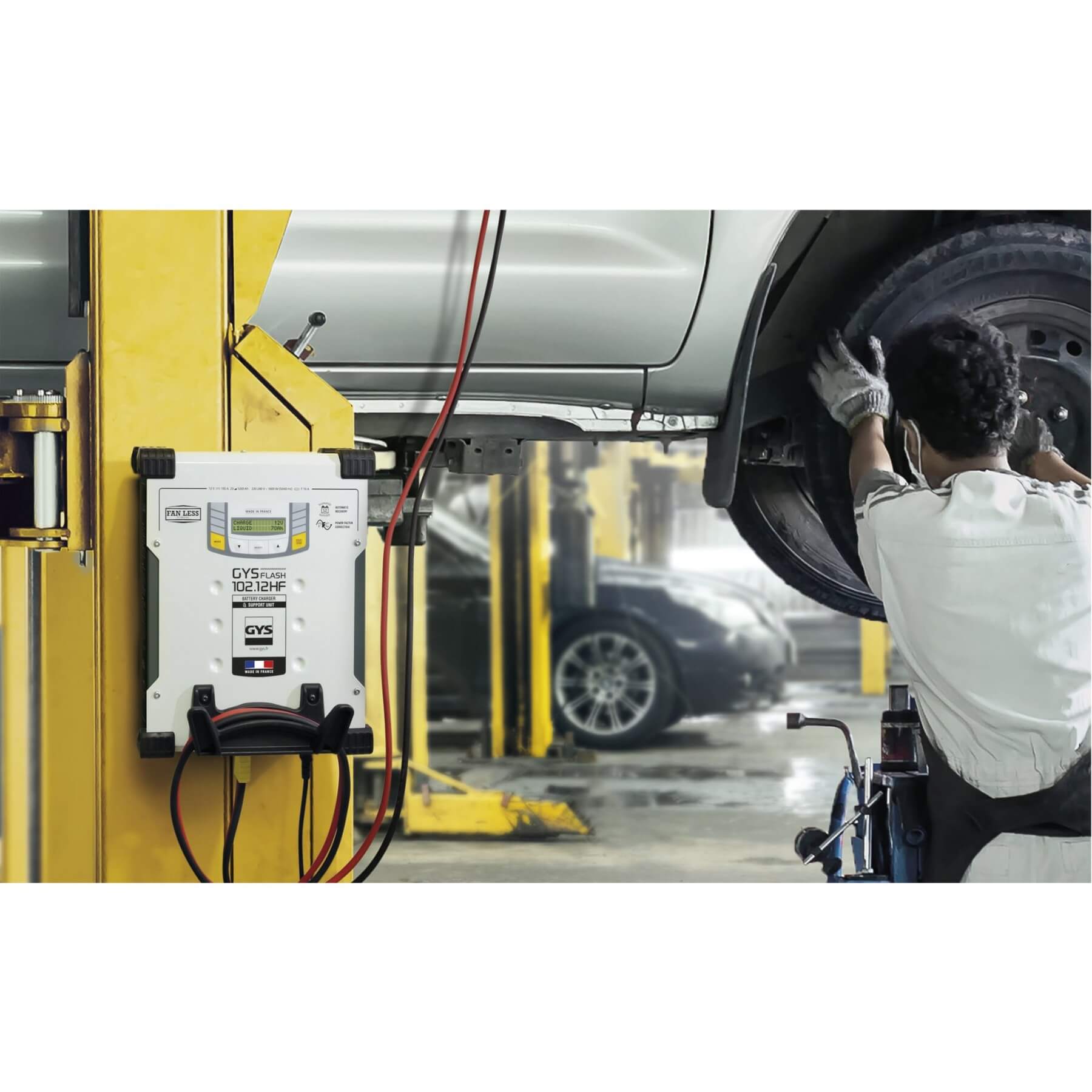

The GYSFLASH 102.12 is a powerful inverter battery charger designed to be fitted on a wall or car lift, capable of supplying up to 100 amps. This device will keep the battery’s voltage perfectly stable at 12V during the diagnostic phases, delivering the best charging cycle recommended for the maintenance of the most advanced vehicles on the market.

5 Different Modes to Use

• Charge: for 12V batteries (lead-acid/AGM/gel) from 20 to 1200 Ah.
• Diag+: supports up to 100 A the 12V batteries for vehicles in the diagnostic phase.
• Battery change: ensures a stabilised power supply to the vehicle during battery replacement to preserve memory settings.
• Power Supply: adapt the charger to a stabilised power supply with voltage and adjustable maximum current.
• Showroom: the charger will compensate for the current used by the consumers on the vehicle.

Advanced Functions

• The Auto Restart function means that the charger will memorise the settings in case of a power cut and restart automatically.
• Control and calibration of cables, the charger can be fitted with cables up to 2x8m long and 16mm² thick.
• Locked in Showroom mode, avoid the risks of misuse, perfect for garages and exhibition spaces.
• 4 charging curves are available, with the Easy mode for a simplified charge adapted to all lead acid batteries.
• Activation and set-up of an Expert charging curve.

100% Automatic Charge

• The 9-step charging curve ensures maximum battery performance and longevity.
• It can recover deeply discharged batteries below >2 V (SOS automatic Recovery).

Ultra Safe

• Protection of the vehicle’s onboard electronics: protection against short circuits, polarity reversal and overcharging. Anti-spark technology.
• Interchangeable fusible which protects against misuse.
• Temperature sensor to prevent internal electronics overheating.
• Automatic stand-by mode if the battery is disconnected

Ergonomic

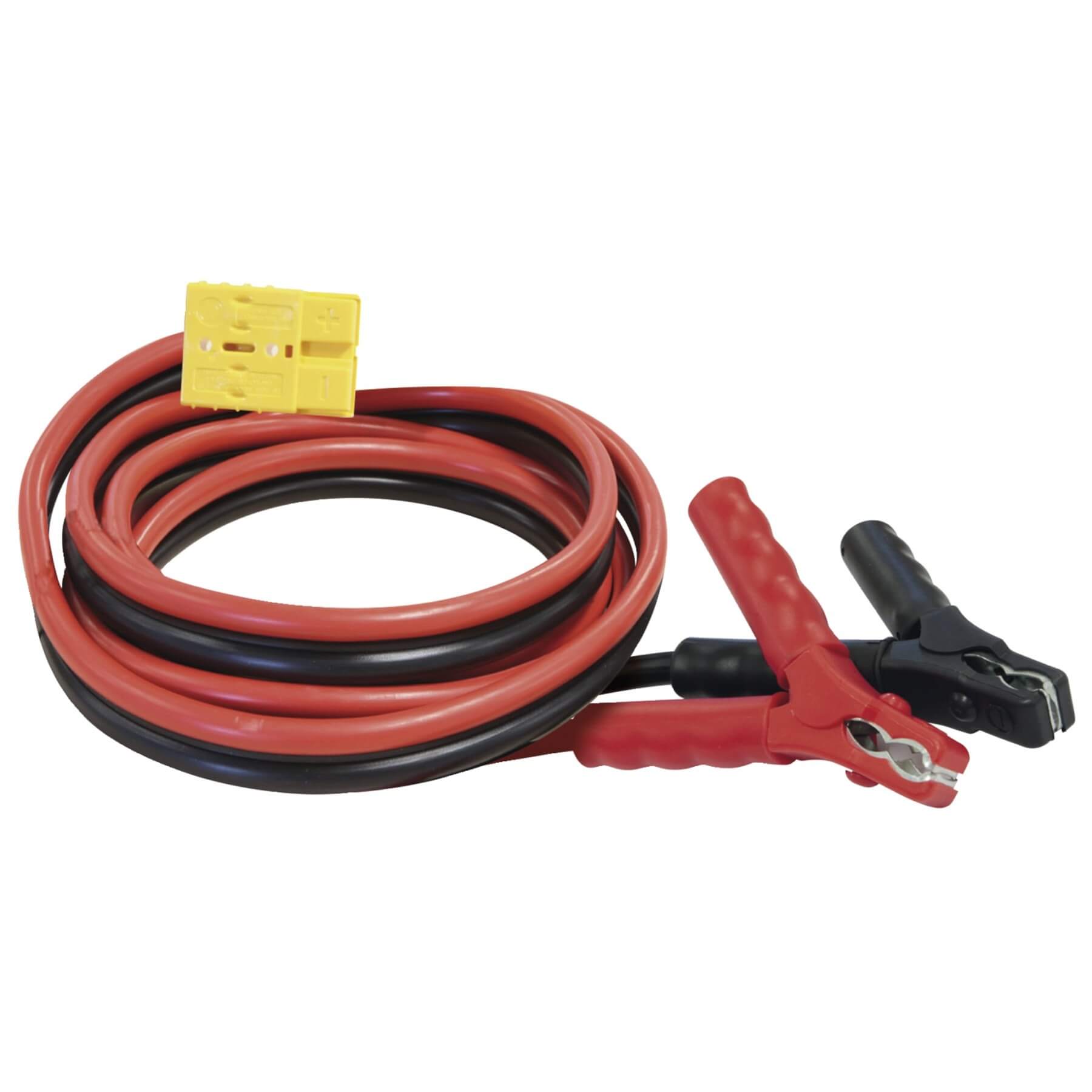

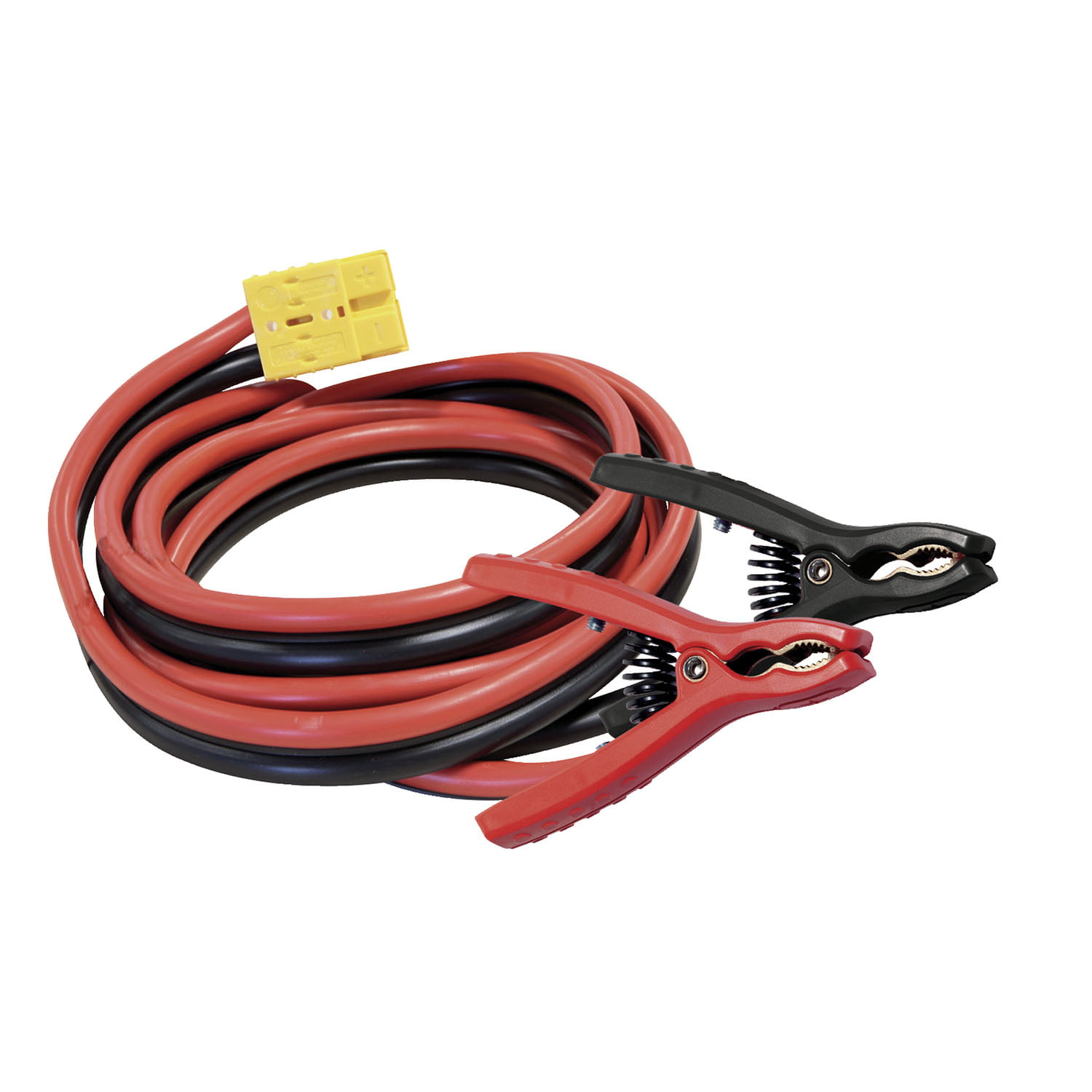

• Compact and robust box with front cable reel (2 x 5 m).
• Pads for shock and vibration absorption.
• Optional wall mount with sliding system or magnetic (Magnetfix).
