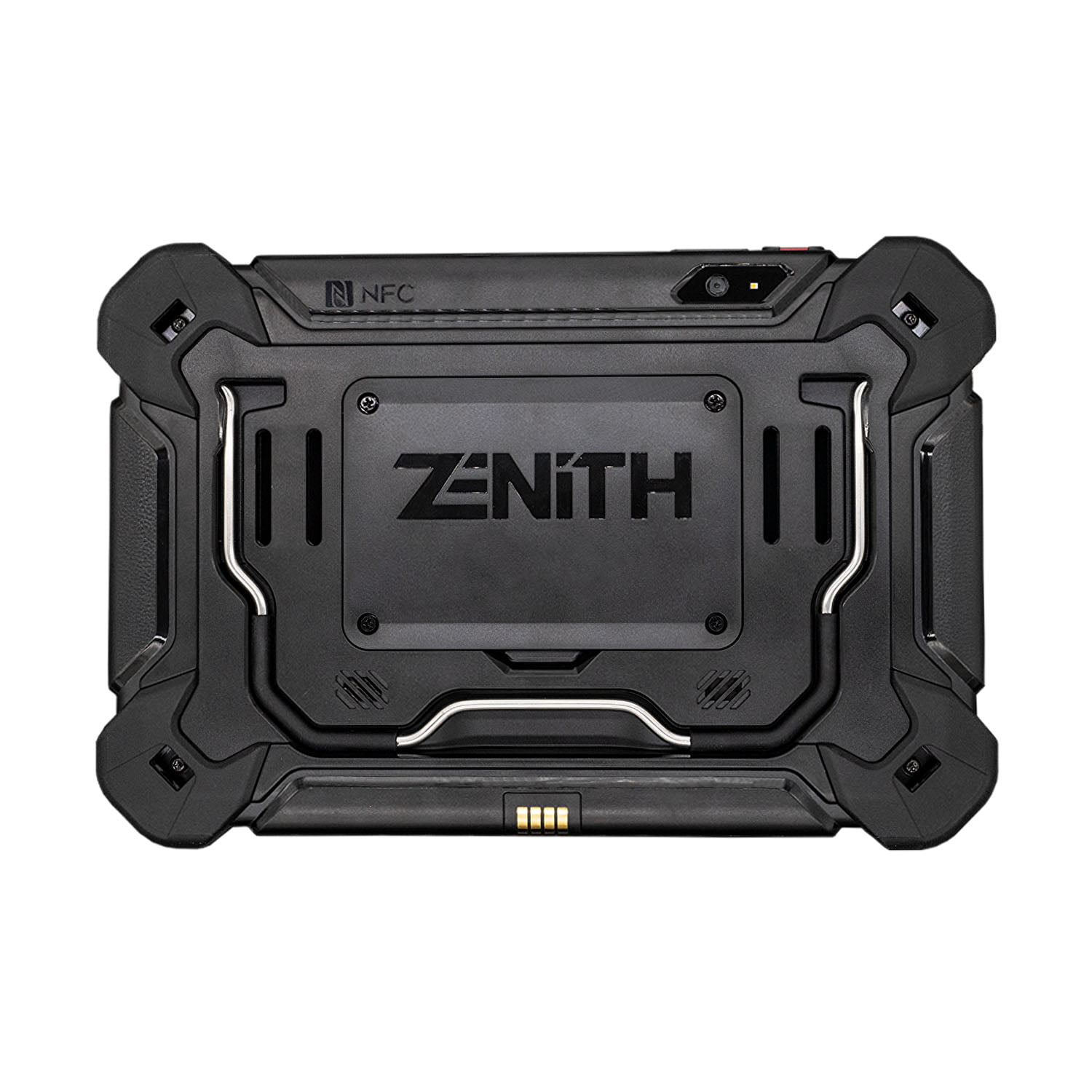

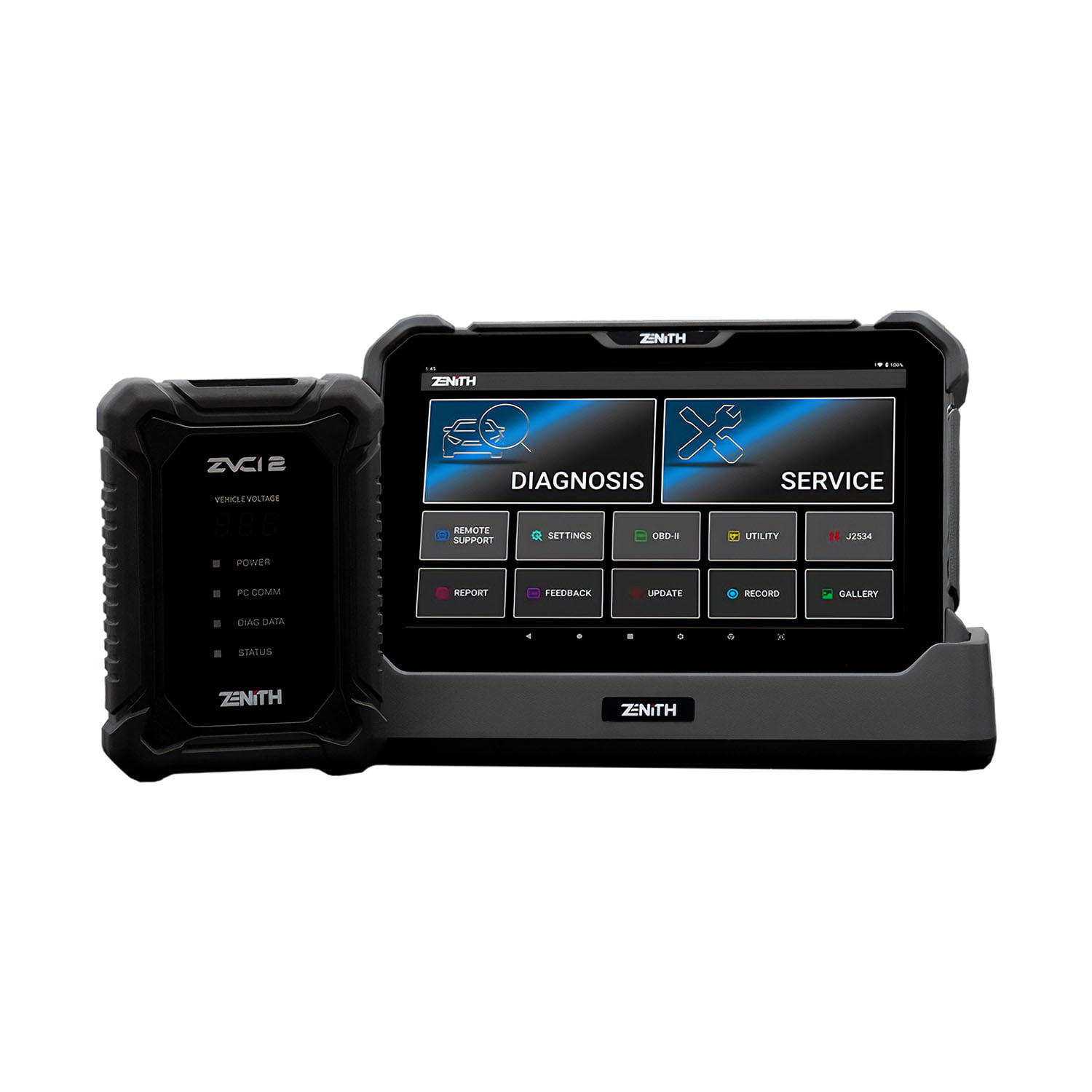

Zenith Z7 Pro
Wireless multi-brand bi-directional scan tool
£2,995.00 ex. VAT
Description
The Zenith Z7 Pro is an advanced wireless scan tool designed to support a wide range of vehicle brands, offering advanced bi-directional diagnostic capabilities for precise and efficient vehicle maintenance.
Features
- Quick Access Functions
Access frequently used service functions without navigating complex menus.
- ADAS Calibration
Includes the latest ADAS calibration software in one package.
- Remote Diagnostics
Supports remote diagnostics via J2534 technology.
- Bluetooth Connectivity
Wireless diagnostics with the latest Bluetooth technology.
- ECU Programming
Functions as a passthru device for programming ECUs across multiple car lines.
- Ultra-Fast System Search
Efficiently detect VIN, model year, model name, engine type, and other critical information with ultra-fast system and auto-system scan capabilities.
- Topology Scan
Perform quick topology scans to diagnose all vehicle systems, report fault codes, and access advanced diagnostic functions in each detected system.
- Service Functions
Save time with shortcuts to the most frequently used workshop functions, eliminating the need to navigate through original menu systems.
- CAN FD & DoIP Support
Stay current with the latest protocols, including CAN FD and DoIP.
- FCA SGW Ready
Access the security gateway on the latest Fiat and Chrysler models via AutoAuth.
- 24V Truck Support
Achieve bi-directional communication with Asian light-duty to medium-duty 24V trucks.
- Detailed DTC Descriptions
View long-text DTC descriptions in full screen with zoom functionality for easy reading.
- Integrated DTC Search
Search DTC codes directly without the need to switch to external web sources, using the integrated magnifying glass button.
- Live Data Analysis
Professionals can view and compare multiple live data points simultaneously, with the ability to search and select desired items for comprehensive data analysis.
- J2534 Pass-thru Device
Zenith functions as a J2534 pass-thru device for multiple car makes with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming and diagnostics.
- Pre & Post Diagnostic Reports
Easily create and manage diagnostic reports with pre-scan and post-scan results. Save reports as PDF files, print via Bluetooth printer, or email them directly from the device.
- Battery Management System
Access detailed battery information, including State of Charge (SOC), State of Health (SOH), voltage, current value, and temperature for each cell in EV, Hybrid EV and Plug-in Hybrid vehicles.
Specifications
| CPU | Octa Core Processor 2.2 GHz |
|---|---|
| Operating System | Android 11 |
| System Memory | 4G / Internal 64G ** |
| External Memory | Micro SD Card Slot Supported (up to 256GB) |

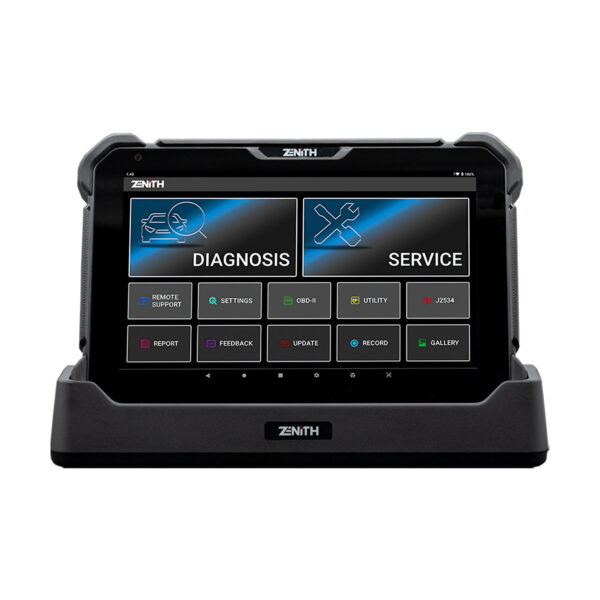

| LCD | 10.1 inch FHD (1920 x 1200) |
| Input Devices | Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -) |
| Camera | 8 megapixel auto-focus with LED flash |
| Sound | Loud Speaker 1 microphone |
| Rechargable Battery | Li-ion 3.85V, 5800mAh |
| Operating Voltage | Main Unit(DC5V) |
| Sensors | Ambient Light, Gyroscope, Accelerometer |

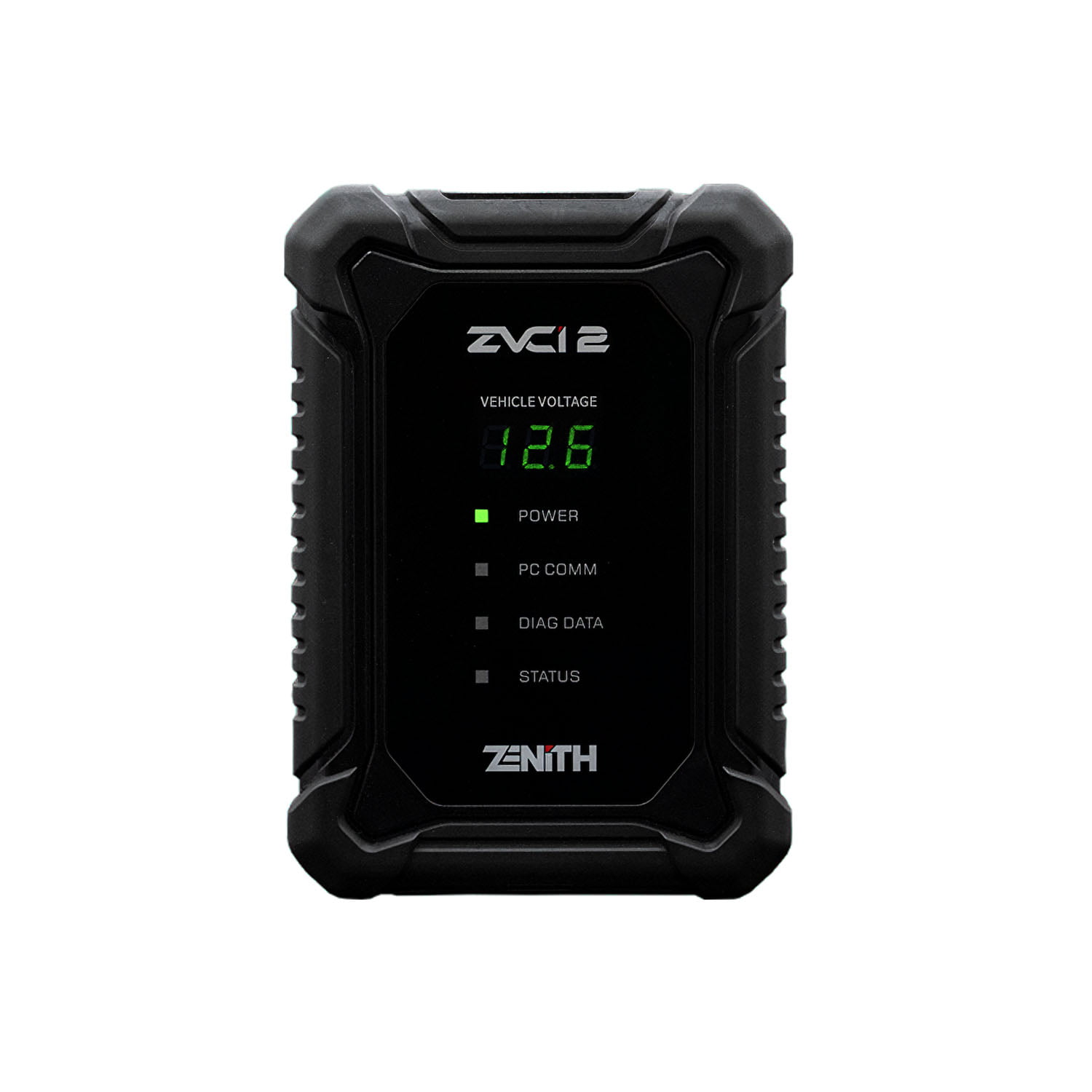

| Dimension | About 275 x 187 x 36mm(Terminal) About 170 x 124 x 32mm(VCI) |
| External Port | 1 x USB Type C (Special Locking Type Port) |
| Network | RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC |
Supported Protocols
| CAN-FD, DoIP By-Pass, CAN (High speed, Low speed, Single) |
| ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000 |
| SAE-J1708, SAE-J1587 |
| J1850(PWM/VPW) |
| Melco Pull-Down |
