Autel MaxiSYS Ultra

The brand new Autel MaxiSYS Ultra is the first diagnostic tool designed to keep pace with the growth of complex automotive electrical systems and Electric Vehicles (EV), which are increasingly becoming more prevalent.

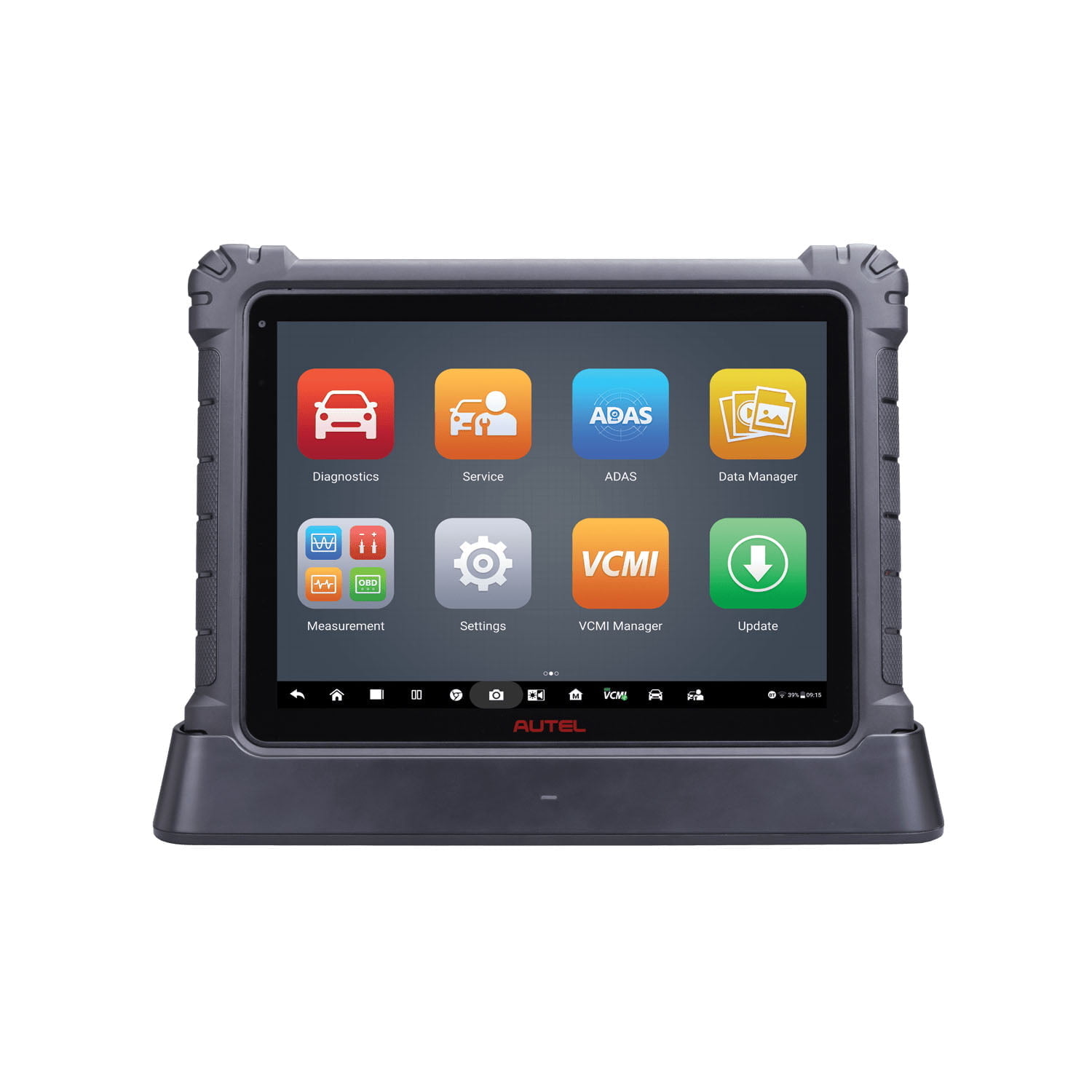

The Ultra features outstanding coverage of over 80 manufacturers, full diagnostics, 26 service functions, channel coding, and programming, all on a large screen with Autel’s fastest processors, largest ever SSD memory, and a docking station included as standard.

It combines diagnostics, service, extensive live data, channel coding, and ECU reflashing from the MS908Pro, along with the all-new MaxiFLASH VCMI with built-in Oscilloscope, Multimeter, Signal Generator, and OBD Bus Check Functions. The VCMI connects to the Ultra using high-speed WiFi for greatly increased communication speeds. It also has enhanced protocol compatibility and supports D-PDU, RP1210, CANFD, J2534, and DoIP protocols.

In addition, the Ultra offers new specialist software capabilities, such as Repair Assist, DTC Analysis, Topology Mapping, and Relevant Cases. The Ultra can be upgraded to operate Autel’s ADAS products.

To further enhance its capabilities, the Ultra’s additional Oscilloscope Accessory Kit can be purchased separately, which includes 1 x 65Amp Current Clamp, 1 x 650Amp Current Clamp, 1 x Coil On Plug Probe, 2 x HT Extension Leads, and 2 x Battery Clips.

Features

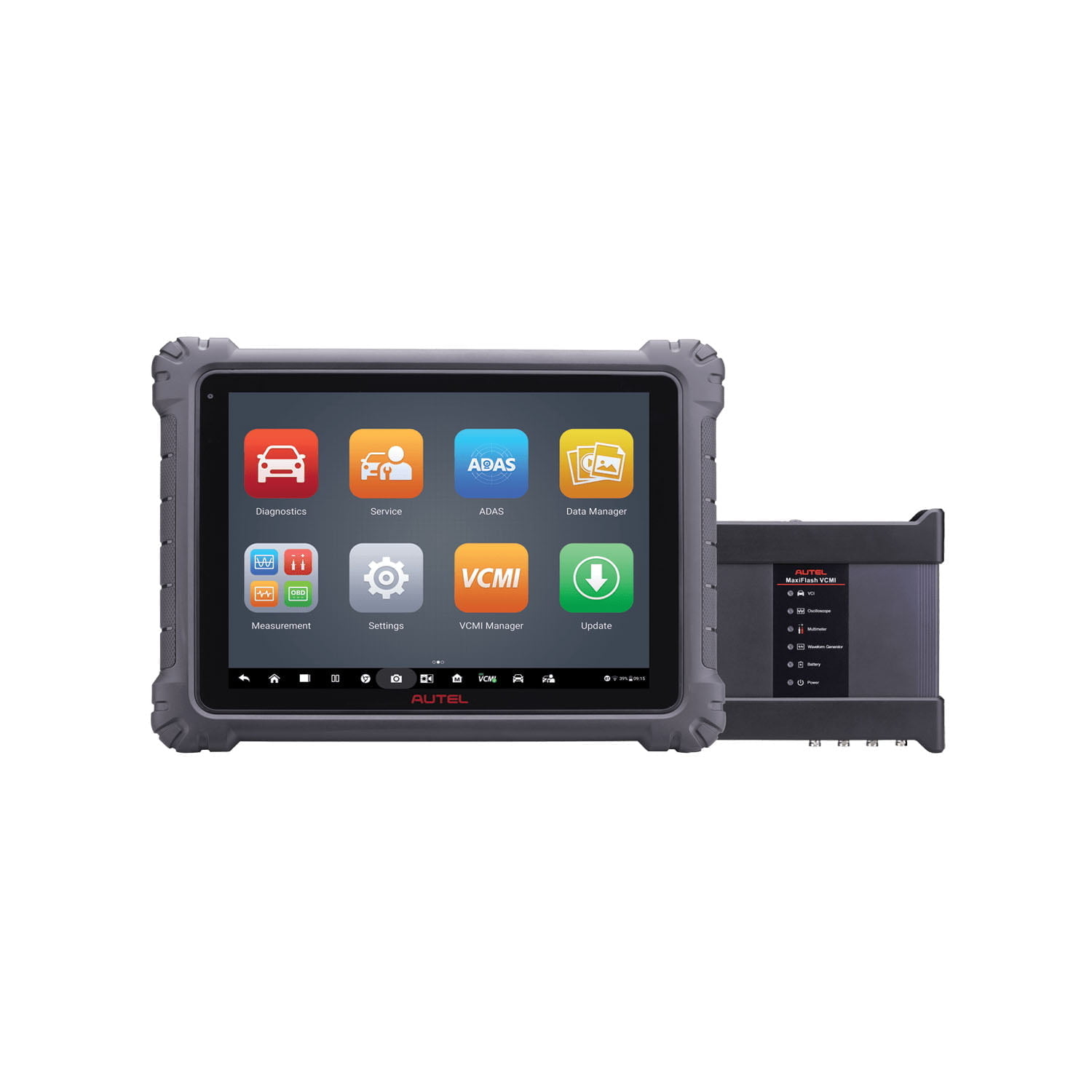

The MaxiSYS Ultra and MS919 come standard with the all-new MaxiFLASH VCMI. The VCMI is a full convergence multi-functional Wi-Fi VCI with a built-in Oscilloscope, Multimeter, Signal Generator, and OBD Bus Check Functions. It’s the only Wi-Fi VCMI currently sold that supports D-PDU, RP1210, CANFD, J2534, and DoIP protocols.

Oscilloscope

The 4 Channel Oscilloscope is faster with 20MHz Bandwidth, more accurate with 80MS/s sampling data rate, and a 32M memory buffer that stores more complex signals, zoom and replay. Autel’s pre-set Guided Test and Waveform Library provides instruction on use and fault analysis. Autel also provides a large number of cloud preset cases, including connection diagrams, waveform library, reference waveforms, fault case analysis, and one-press waveform settings.

Waveform Generator

The Waveform Generator is used to test a sensor, an actuator, or an ECU without the need to replace them one by one to identify the fault. This is done by simulating signals of various sensors and ECUs, and identifying hardware issues.

Multimeter

The professional Multimeter measures Voltage, Current, Resistance, Diode, Frequency/Period, Duty Cycle, Connectivity, and Pulse Width.

CAN Bus Check

The CAN Bus Check quickly determines whether the OBD pins are functioning correctly.

J2534, DoIP Bus, CAN-FD Bus, RP1210, and D-PDU

The Autel VCMI supplied with the Ultra and MS919 supports all the latest communication and application programming interface protocols.

System Topology

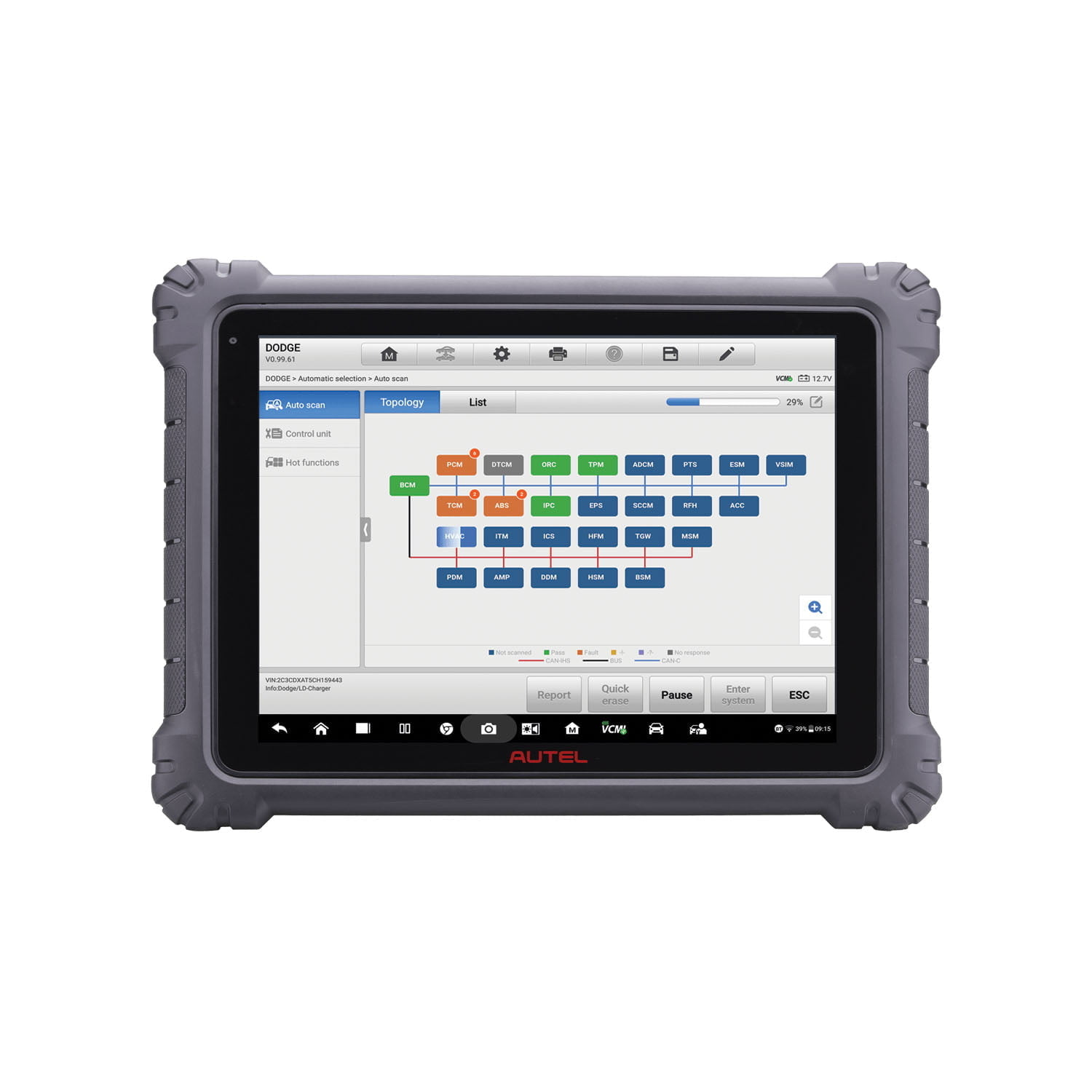

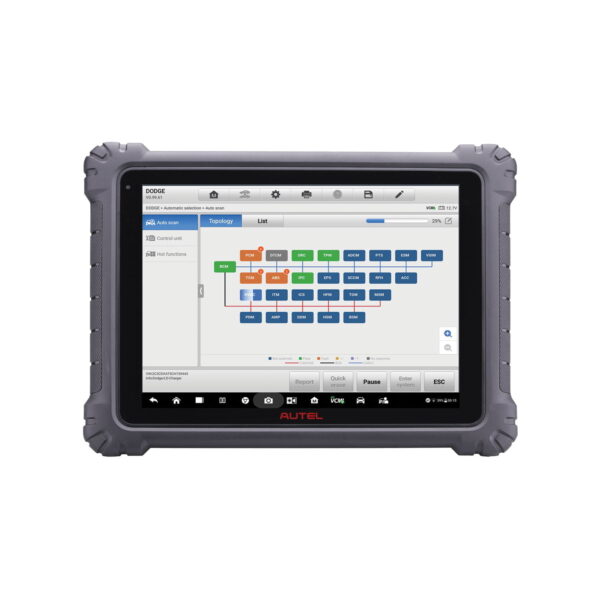

The Autel exclusive System Topology Software shows a colour-coded topology display for all vehicle systems and their status on one page. This display illustrates the structure of communication between modules and provides access to any DTCs by clicking on a system module.

Currently available for BMW, Ford, Volkswagen, Audi, GM, Chrysler, Nissan, Honda, Toyota Lexus, Jaguar, Land Rover, Mercedes Benz, Hyundai, Kia, and Volvo.

Repair Assistant

The Repair Assist Software lists recommended tests with their completion status and priority level. The higher the priority, the sooner the components should be tested. Prioritisation is automatically sorted to provide the best solution path.

Guided Maintenance provides a troubleshooting process that guides the user to solve maintenance problems in a logical order.

Accurate recommendation automatically matches the required circuit diagram and pin position for the fault.

In cases with multiple inspection steps, you can carry out the inspection step by step or skip unnecessary steps.

Currently available for BMW, JLR, GM, Ford, Chrysler, and Porsche.

Relevant Cases

The software automatically recommends repair processes that may be relevant to the vehicle and fault. These repair cases/suggestions give the technician great insight when diagnosing and repairing vehicle faults.

Tech Services Bulletins show official announcements issued by vehicle manufacturers regarding common problems, including vehicle modules, DTCs, repair methods, program updates, and recall strategies.

Currently available for Ford, GM, FCA, Toyota, Lexus, VW, Nissan, Honda, BMW, Mercedes, Audi, Hyundai, and Kia.

DTC Analysis

The DTC Analysis describes possible causes and solutions for vehicle faults.

Currently available for GM, Ford, Toyota
